[HELPER 0.13-1.1] Screenshot Maker Deluxe 3.0 (EN,DE,JP)

eradicator · Post by **eradicator** » Sat Jul 30, 2016 12:34 pm

This post is outdated.

See Eradicator's Screenshot Maker Deluxe 3.0 on the mod-portal for the latest information and releases.

Old 2.0 Post

Pictures

Changelog

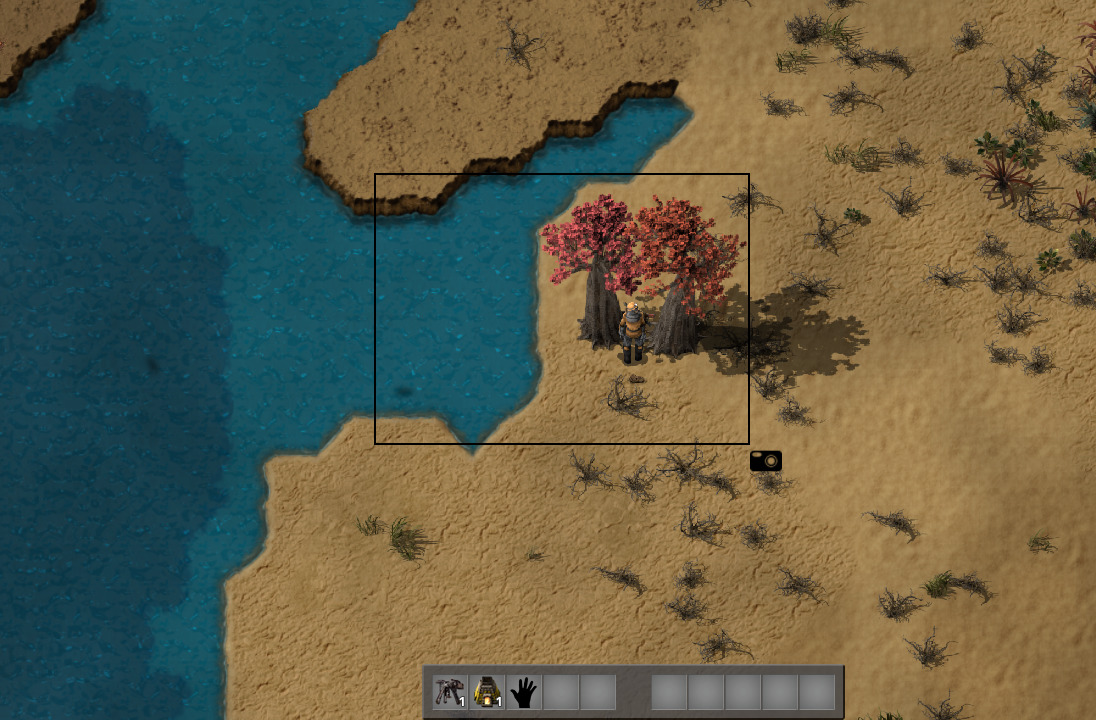

How to take a picture

Version Archive

Liono2010 · Post by **Liono2010** » Mon Feb 13, 2017 3:10 am

I thought to create such a mod, but I found that it had already been made.

eradicator · Post by **eradicator** » Tue Jul 10, 2018 11:23 am

After getting no requests whatsoever, i finally decided to bring this best of all screenshot tools to 0.16.
Enjoy Screenshot Hotkey 2.0!

melie · Post by **melie** » Sat Aug 03, 2019 1:18 am

Hey, can you fix lines 141..145 (control.lua) from

Code: Select all

    args.xpos = tonumber (pmain['xpos_text'    ].text)
    args.ypos = tonumber (pmain['ypos_text'    ].text)
    args.xres = tointeger(pmain['xres_text'    ].text)
    args.yres = tointeger(pmain['yres_text'    ].text)
    args.zoom = tonumber (pmain['scale_text'   ].text) --may be decimal

to

Code: Select all

    args.zoom = tonumber (pmain['scale_text'   ].text) --may be decimal
    args.xpos = tonumber (pmain['xpos_text'    ].text)
    args.ypos = tonumber (pmain['ypos_text'    ].text)
    args.xres = math.ceil(tointeger(pmain['xres_text'    ].text)* args.zoom)
    args.yres = math.ceil(tointeger(pmain['yres_text'    ].text)* args.zoom)

?

After this mod will capture exactly what is highlighted by a rectangle with any zoom, not a rectangle zoom-times larger than the selected rectangle. This is ten times more intuitive behavior, it seems to me.

eradicator · Post by **eradicator** » Sat Aug 03, 2019 3:26 am

Thanks for the detailed bugreport! That's probably been sitting there since version 1 and nobody ever reported it. The fixed version is on the portal now, and i also updated the opening post ;). (Btw, the engine is nice enough to do the math.floor() on it's own, so unless you have an argument for using math.ceil() instead?...)

melie · Post by **melie** » Sat Aug 03, 2019 1:17 pm

I chose ceil, because it’s better to take one extra pixel and guaranteed to capture the selected rectangle than not to get one pixel. However, there is no difference, this is just one pixel.

eradicator · Post by **eradicator** » Sun Aug 04, 2019 2:19 am

melie wrote: ↑Sat Aug 03, 2019 1:17 pm I chose ceil, because it’s better to take one extra pixel and guaranteed to capture the selected rectangle than not to get one pixel. However, there is no difference, this is just one pixel.

I see. The default numbers in the gui are already enlarged to fit all tiles within the rectangle though, so anyone who's not manually inputting the resolution is already getting quite a few more pixels than they selected.

melie · Post by **melie** » Wed Dec 02, 2020 7:41 pm

It's still work with 1.1
Sorry for my English again.

Need change "clean" to "clear" (control.lua:259 and data.lua:23)
And change strings 122..126 (add "tostring") in control.lua to

Code: Select all

  pmain['xres_text'    ].text = tostring(camera_settings.w)
  pmain['yres_text'    ].text = tostring(camera_settings.h)
  pmain['xpos_text'    ].text = tostring(camera_settings.x or math.floor(player.position.x))
  pmain['ypos_text'    ].text = tostring(camera_settings.y or math.floor(player.position.y))
  pmain['scale_text'   ].text = tostring(camera_settings.zoom)

eradicator · Post by **eradicator** » Fri Dec 04, 2020 9:02 pm

melie wrote: ↑Wed Dec 02, 2020 7:41 pm It's still work with 1.1

Hi again! :D

Thanks for being faithful to such an old mod! I've meant to update it for a long time - to use more of the new api features implemented in the last years and apply a bit of polishing to the gui. Never got enough motivation but knowing there's still someone out there using it i've now finally started working on it. I should be able to push a release in the next 1-2 weeks if all goes well.

(PS: Also your English is really fine. Most people here aren't native speakers.)

eradicator · Post by **eradicator** » Sat Dec 12, 2020 12:26 am

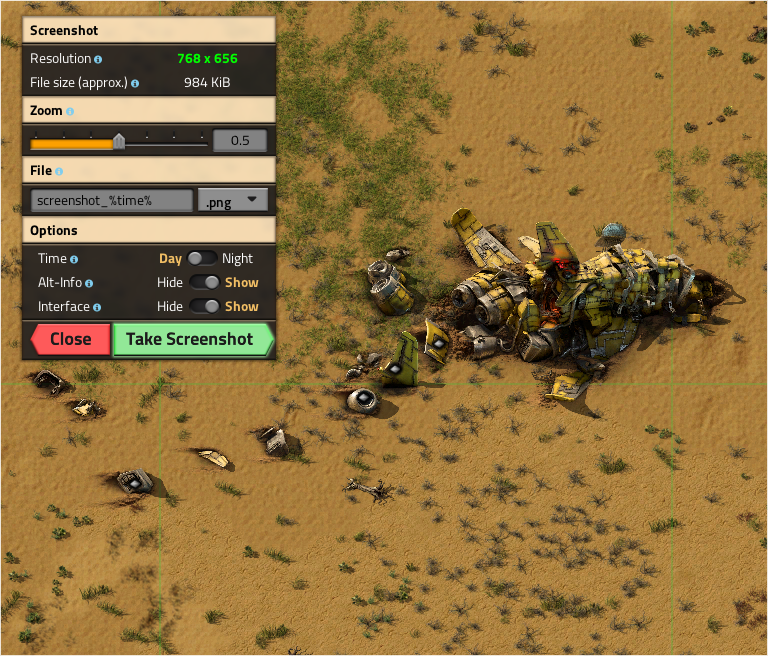

The next version is coming along steadily.

: screenshot_001h_20m_41s.png (922.19 KiB) Viewed 4211 times

eradicator · Post by **eradicator** » Mon Mar 15, 2021 10:52 pm

Eradicator's Screenshot Maker Deluxe 3.0 has been released on the portal.
