Encoded Planetary Control - EPC

Post by Stin »

This is the next generation of my CPC - Central Planetary Control - System. The version before the previous version was Simple Demand based production
The Design is functional all features of the CPC. It is still not finish.

Apllication
  • Robo-controlled production
  • one main base per planet where a large part of the production takes place. I recommend limiting the logistics network to the main base as well
  • Outposts can be operated remotely with smaller isolated logistic networks and trains or e.g. spidertrons
  • This design is intended to eliminate the disadvantages of robot-controlled production as far as possible and utilize its full potential
Why a redesign?
  • The old system was very central and you had to do all your analysis at the CPC.
  • Very limited bandwidth. Above all, I would have liked to transmit more train signals and especially the percentage value that shows how much of the capacity was filled
  • Due to the high local signal density, but low possibility of transmitting signals, a modular design was not possible

Why encoded?
  • The red signal line is encoded bit by bit and cannot be read directly without a decoder. It is therefore not compatible with the old CPC system. All relay stations must first be deleted and replaced by production decoders
  • because they are encoded, they can be distributed planet-wide via the radar stations without any problems and in a large bandwidth

Core

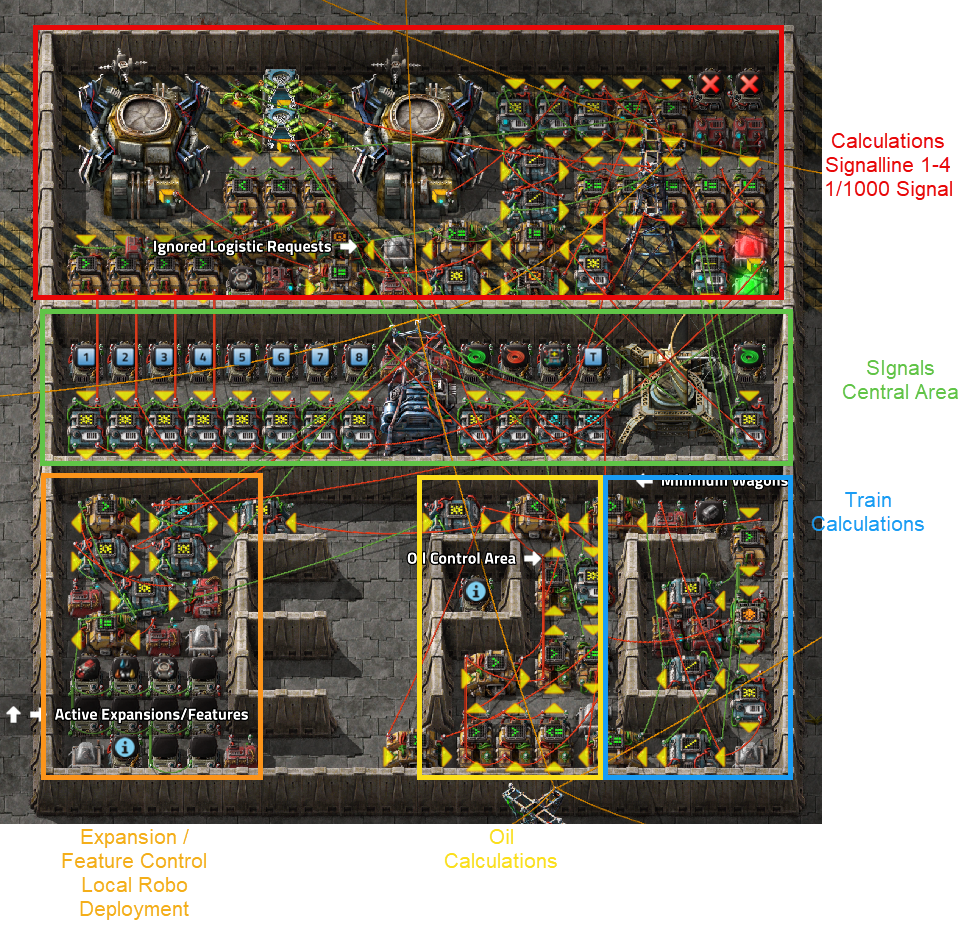

EPC - Core
  • If there are logistical requests that are higher than the reported capacity, the capacity for the logistical request is temporarily increased. Signals can be excluded here
  • It calculates on the basis of the reported capacities via the green signal line with the available items in the logistics network. From this, a 1/1000 fulfillment wheel is formed and reported on the first 12 bits. This value is never less than 1 or greater than 4000 if there is a request. During the calculation, care is also taken to ensure that no overflow of the 32 bit variables leads to calculation errors
  • Based on the capacities, the number of trains required to fulfill the capacity is calculated for all items. In my case, these have 4 wagons. This value can be adjusted. Values from 0 to 15 are possible (4 bit)
  • The filling levels of the liquids are used to calculate which production methods would make sense. The solid full productions should be designed in such a way that they burn excess fuel
  • The calculations are made for all signals that are not ignored. There are constant combinators with an x that contain the list of the ignored signals
  • Tank fill levels must be reported via the uncommon quality level using the green signal line. Use a quality transfair for this
  • Train and Oil Automatic can be deactivated with the deactivator blueprint

Decoder

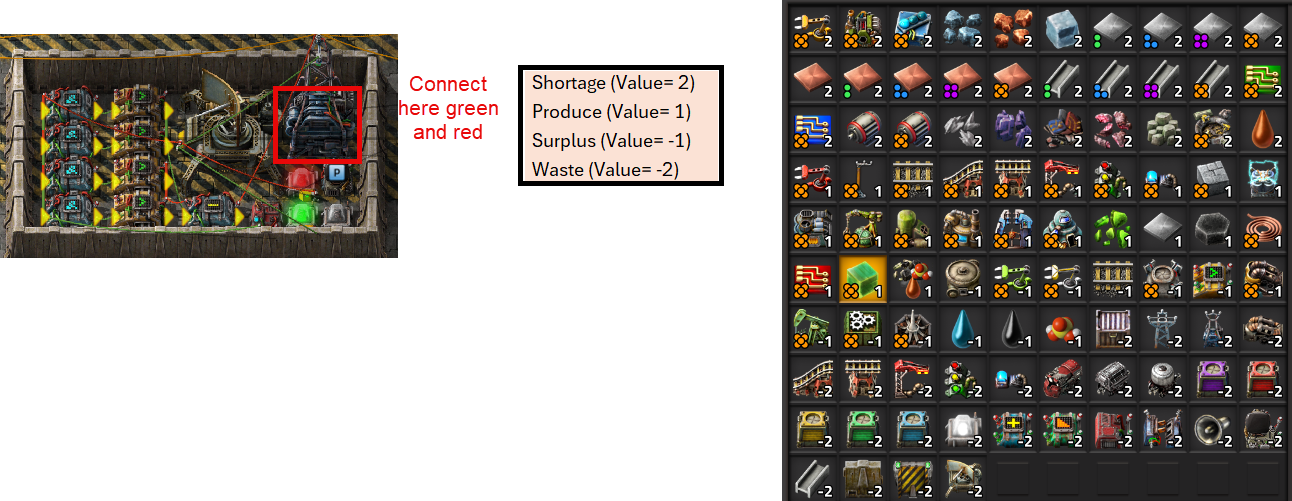

EPC - Production Decoder
  • Converts the first 4 bits of the production control into an integer.
  • Most production plants should be started up with >0 of your manufactured item
  • Waste signals only for normally qualitie items

EPC - 1/1000 Decoder
  • This decoder is primarily used for displaying values and other modules that take this value as a basis for performing calculations
  • Since calculations become much more complicated when values assume 0, the most envious value of states that have a capacity is 1 and because of its 12 bit nature it cannot become larger than 4k.
  • The 5 display module shows the possibilities. Here, 5 selectable values are filtered and displayed from the largest to the smallest. The symbol of the object is automatically transmitted to the monitor
  • Why no percentage value? Because the value should normally be 10 times as accurate as you need it to be. It also makes it easier for me to turn the 0 values into 1 values without it interfering.

EPC - Train Decoder
  • Calculates the difference between capacity and content of the logistics network / reported fill levels. From this, it calculates full wagons (including tank wagons) that are required
  • Then calculate how many full trains would be needed. For all items that have capacity.
  • I used 4 wagon trains with 2 locomotives so the default setting here is 4
  • Due to its 4bit nature, this signal can assume values from 0 to 15

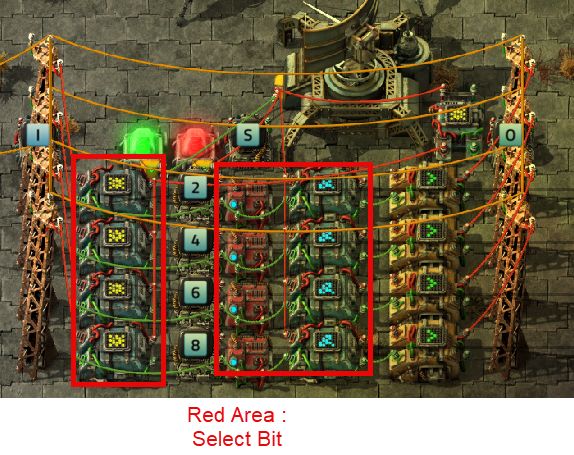

EPC - Single Decoder
  • Reading a single Bit Signal
  • Selectable with the combinator

Interface

EPC - Interface
  • Reading and sending for 4x single Bit Signals
  • Selectable with the combinators


Modular Expansions

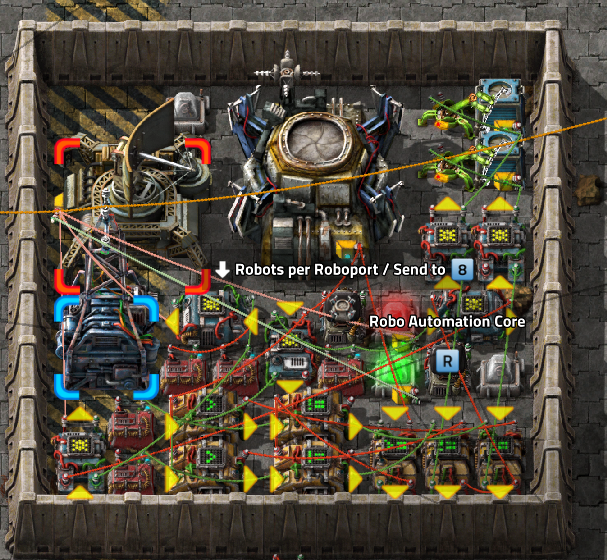

EPC - Robo Automation
  • Deploy highes qualitie robos if the numer is less then die calculatet values
  • Send signal to deploy Robos on Signalline 8 for additional Robo deployer. (Can be deactivated)

EPC - Other Addons
  • Have there own post (more complex)
EPC - Deactivator
  • Allows to deactivate train calculations
  • Allows to deactivate Oil Automation
  • Allows to transmit unreserved Signals on SIgnalline 8


Testing Status
  • Nauvis working
  • Fulgora working
  • Vulcanos working
  • Gleba testing

0.62 - Plan B for Recyler Lines
0.61 - Robo Debug / Recyler Lines Addon
0.60 - Oil Improvements / robos / preparation for expansion
0.53 - Added Single Decoder & Interface
0.52 - Added train Needed
0.51 - Added rarest items display

Last edited by Stin on Wed Nov 27, 2024 8:15 am, edited 28 times in total.
English is my second language and I am not good at languages

My Creations:
EPC - Encodes Planetary Control

Circulet Examples:
Signal Encoding & Decoding
Signal Filtering
Stin
Long Handed Inserter
Long Handed Inserter
Posts: 63
Joined: Fri Nov 09, 2018 7:16 pm
Contact:

Re: Encoded Planetary Control - EPC

Post by Stin »

When entire signal lines are calculated, many cool tasks on site are almost trivial

The Gadgets here are part auf the Blueprint in the first post

Dynamic display of selected items and their degree of capacity achievement


Dynamic display of needed full trains
Last edited by Stin on Fri Nov 22, 2024 12:32 pm, edited 3 times in total.
English is my second language and I am not good at languages

My Creations:
EPC - Encodes Planetary Control

Circulet Examples:
Signal Encoding & Decoding
Signal Filtering
Stin
Long Handed Inserter
Long Handed Inserter
Posts: 63
Joined: Fri Nov 09, 2018 7:16 pm
Contact:

Re: Encoded Planetary Control - EPC

Post by Stin »

Recycler Lines

The next add-on module was one of the reasons why I switched from CPC to EPC.
Fulgora was not manageable for me. Many different quality levels are created with quality modules, which then clutter up the logistics network.
There are so many that you can't request them all at the requester chests at the same time.in addition, legendary quality modules are still in short supply for me after more than 300 hours

I developed the Line 5 specifically for Fulgora in mind and when it went online, Fulgora was mastered in just over an hour.
I had over 5M uncommon to epic quality items on Fulgora at the time. After a little over an hour this was down to 50k

The idea was to create a dynamic list of items that the requester chests would then request. This list should not be too large and should not change constantly. Constantly changing the lists places an enormous load on the Logist Robots.

What I would like to achieve
  • Everything that is not legendary or normal should be converted to legendary status with recylers and quality modules
  • When normal items have full capacity, important items should be transferred to legendary.
How it Works
  • The module counts up ticks and shuffles the lists in a 10-tick cycle. By default, this happens between 3990 and 4000 ticks. This time can be adjusted with the variable A
  • At the time of the switch, the list is then stored in memory circulet and sent bit by bit to Line 5-7. The lists are not renewed until the next switch
  • These lists can then be read and requested by the requester (Use Single Decoder and switch die Line) chests and the recyclers. I then multiply these requests by the stack size and request them. Here it is important that unrequested are trashed
  • The progress in the gif is 10x slower by standard setting.
  • All Lines have a Plan B. One of the common items that meets the critera from Line 6.

Line 5 - Fulgora Heavy Duty
  • All items with a quality level higher than normal but lower than legendary are collected. Then it is checked that at least 100 of them are available and a descending list is created according to the total number in the logistics network. The highest 10 are then sent bit by bit to Line 5.
  • At the time of the switch, the list is then stored in memory circulet and sent bit by bit to Line 5-7. The lists are not renewed until the next switch


Line 6+7 - quality improvement and overproduction of legendary disposals
  • Check the legendary item list before using Line 6 or 7
  • Compares a manual list with the fulfillment levels of the 1/1000. If these are over 1000, they are added to the list
  • Compares a second manual list of legendary items with the fulfillment levels of the 1/1000. If these are over 1500, they are added to the list
  • One is chosen at random from this list, one for line 6 and one for line 7
  • These lines will be interesting for me when I rebuild Vulcanos where most of my legendary items are currently being built

EPC - Recycler Lines - BP
First Post in the Book (0.61+)
Last edited by Stin on Sat Nov 23, 2024 1:34 pm, edited 7 times in total.
English is my second language and I am not good at languages

My Creations:
EPC - Encodes Planetary Control

Circulet Examples:
Signal Encoding & Decoding
Signal Filtering
Stin
Long Handed Inserter
Long Handed Inserter
Posts: 63
Joined: Fri Nov 09, 2018 7:16 pm
Contact:

Re: Encoded Planetary Control - EPC

Post by Stin »

if someone wants to create designs for production machines that work with normal quality, i would also offer them here (if they work / don't have to be super efficient) as examples, naming the author.
I am no longer interested in normal quality production machines.

My EPC systems do not lose efficiency when they are normal: production systems do.
English is my second language and I am not good at languages

My Creations:
EPC - Encodes Planetary Control

Circulet Examples:
Signal Encoding & Decoding
Signal Filtering
Stin
Long Handed Inserter
Long Handed Inserter
Posts: 63
Joined: Fri Nov 09, 2018 7:16 pm
Contact:

Re: Encoded Planetary Control - EPC

Post by Stin »

Reserved

Recyler Lines new (post 3)
English is my second language and I am not good at languages

My Creations:
EPC - Encodes Planetary Control

Circulet Examples:
Signal Encoding & Decoding
Signal Filtering
Stin
Long Handed Inserter
Long Handed Inserter
Posts: 63
Joined: Fri Nov 09, 2018 7:16 pm
Contact:

Re: Encoded Planetary Control - EPC

Post by Stin »

My main planet Vulcanos has been completely rebuilt and optimized for EPC. The production of legendary items has been significantly increased. Dynamic control of the recyclers and production chains had a major influence here.

I now produce a double-digit number of legendary level 3 modules and machines (Forge, Big Mining Drill, assemble Maachine 3, ect) per hour.

But I have also noticed that the division of the lines is not yet optimal and I will redesign it again.

I will adapt Gleba and Aquillo to the new system and then continue to pursue my idea here. That will certainly take 1-2 weeks.

If someone should use my design in parts and has suggestions, he is welcome to contact me.
