Split by 3, 5, 7, 9

[Z903]

Hey everyone,

So a while ago I came up with a way to use splitters to split a stream of resources by odd numbers ( or any number for that matter ).

The basic principle is to find the next biggest power of two and route the undesired fraction back into the input. This creates a recursive splitting. In the case of a divide by 3 every 4th item will loop back to the beginning and be resorted.

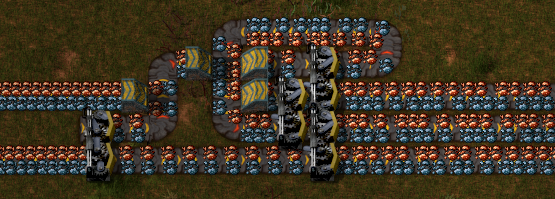

These are just some simple examples ( 3, 5, 7, 9 ).


They have been kept simple for the example using only basic belts.

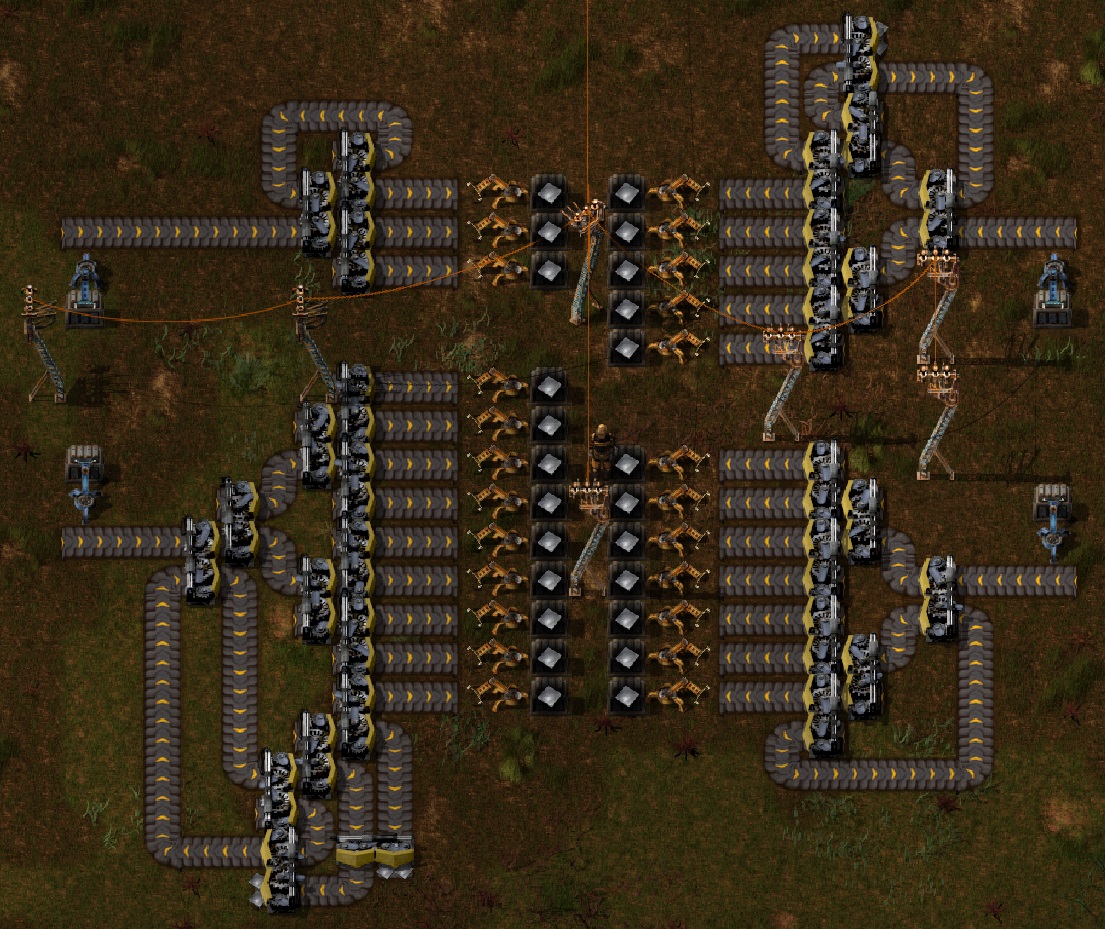

I have also made some designs to take 2 and split them evenly across 3 output belts. The input lines are fully loaded with ore and split evenly.

This originally was inspired by my need to upgrade my smelting array from 4 to 6 furnace lines ( from 64 to 96 elec ).

If anybody has a request for me to post an x in to y out, please do.

Let me know if this is of any use to you,
Have fun!

Edit: added second picture and explanation

[Tinyboss]

Very nice!

[n9103]

This ends up being a neatly split result?
Rather simpler than I would've thought in that case, though it does make sense.
Thanks for the pointer.

[Z903]

Yes it is a perfect split. If you put 30 iron in the input you will get 10 out each path of the 3 split.

Even if the input is fully loaded but not if the output is blocked.

[ssilk]

I hope it is ok, that I included the pics into the wiki, if not just tell:

https://forums.factorio.com/wiki/inde ... _splitters

[The Lone Wolfling]

This is similar to how PRNGs generate random numbers in ranges - they generate a certain number of bits and discard if it is above the maximum number. (Sort of like generating a number between 1 and 7 by rolling an 8-sided die and repeating if/when it comes up 8.)

The one thing I will say with this design is that you have to be careful that your belts backwards don't get clogged or you'll lose the nice splitting value.

[skomick]

Beautiful. I actually bookmarked this topic!

[Z903]

I hope it is ok, that I included the pics into the wiki, if not just tell:

https://forums.factorio.com/wiki/inde ... _splitters

Ya its fine to add them to the wiki

Beautiful. I actually bookmarked this topic!

Thanks!

[Skoobles]

What about the dangling splitter on the 5 split? is there some way I should be connecting that up?

[quyxkh]

You could do that, but already everything going through that splitter is recirculating, I assuage my OCD's dislike of the dead end by thinking of the four plates stuck there as the splitter⇒merger conversion cost.

[Jap2.0]

No, you don't need to hook it up anywhere. By the way, this thread has been dead for almost 3 years.

[golfmiketango]

What about the dangling splitter on the 5 split? is there some way I should be connecting that up?

No such dangle, that splitter does not exist -- what you are seeing is the top and bottom half of two splitters.
