Sprite Sheet

[DiegoPro77]

I've 26 frames/images for do an animation for an entity: how can i merge them in a single frame?

[darkfrei]

I've 26 frames/images for do an animation for an entity: how can i merge them in a single frame?

viewtopic.php?f=34&t=5336&start=20#p335708
Put your images to the /Input/, start the script 4x8.

[DiegoPro77]

It tells me that it can hurt my pc…

[darkfrei]

It tells me that it can hurt my pc…

You can also download the last verson of ImageMagick here: http://www.imagemagick.org/script/download.php#windows
I think that portable version (now: ImageMagick-7.0.7-37-portable-Q16-x64.zip) is the best solution, so you can use only the part of this program.
Then use some easy .bat file:

Code: Select all

montage "Input/*.png" -geometry +0+0 -tile4x8 -background rgba(0,0,0,0) -quality 100% spritesheet_4x8.png

[DiegoPro77]

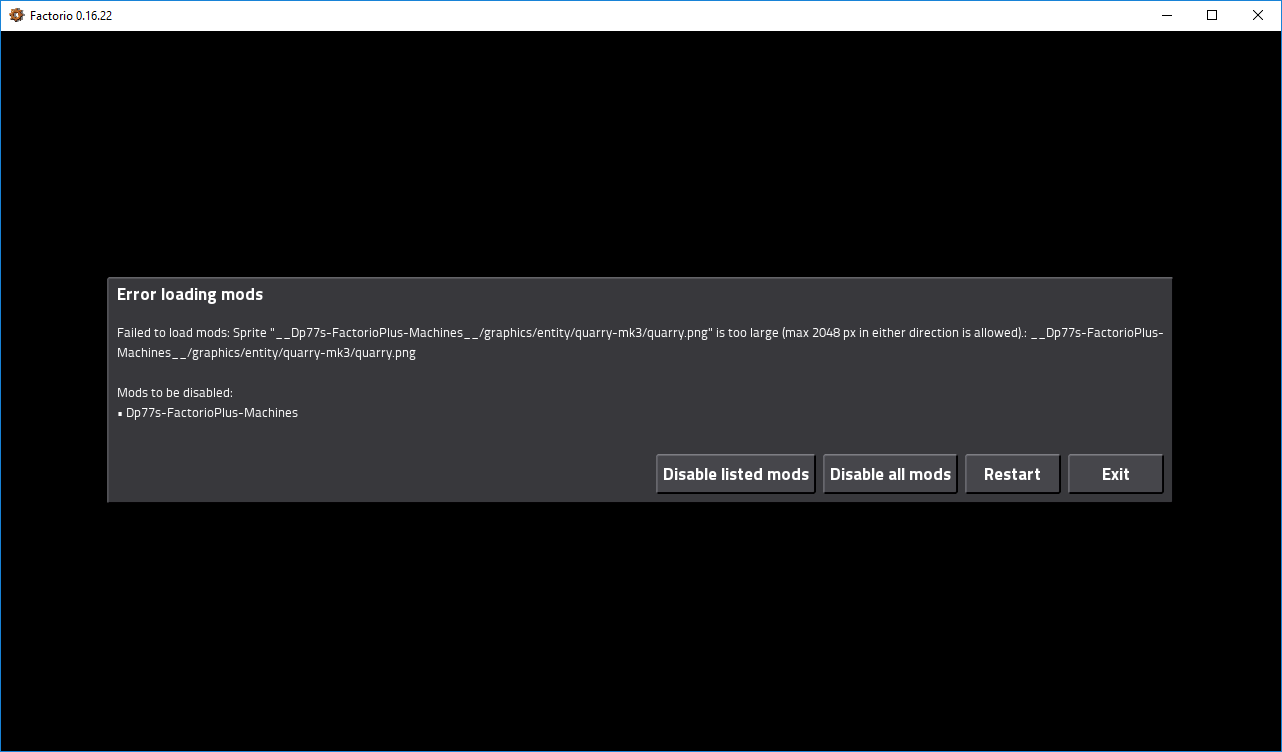

Ok, but now i've another problem: the game recognize the sprite sheet, but as a single photo, and it tells me this...

[darkfrei]

Ok, but now i've another problem: the game recognize the sprite sheet, but as a single photo, and it tells me this...

Is your image higher than 2048 or wider than 2048? This script will crop so much as possible white (alpha?) space about your images:

Code: Select all

magick "Input/*.png" -background none ^
   ( -clone 0--1 -layers merge ^
   -set option:cropper "%%[@]" +delete ) ^
   -crop %%[cropper] +repage ^
   MIFF:- | magick montage MIFF:- -background none ^
   -tile 4x8 -geometry +0+0 Output\best_spritesheet_4x8.png

Please attach your sprites or dimensions of them.

[Arch666Angel]

https://draeton.github.io/stitches/

That's what I use.
