Just another solar farm

Post by pichutarius »

Many posted their awesome solar farm layout, none suit my taste, so i design this myself.
Let's get to the point.

Goal:
1. Perfect 25:21 ratio
2. Tileable
3. Able to start from small
4. Able to construct via map view (use radar and roboport)
5. Pretty to look at (symmetric)
6. Minimize unusable space, radar, roboport.
solar farm blue print book
I will walk through my thought process. If u are not interested, the string is above, nothing to see below.
1x1 unit

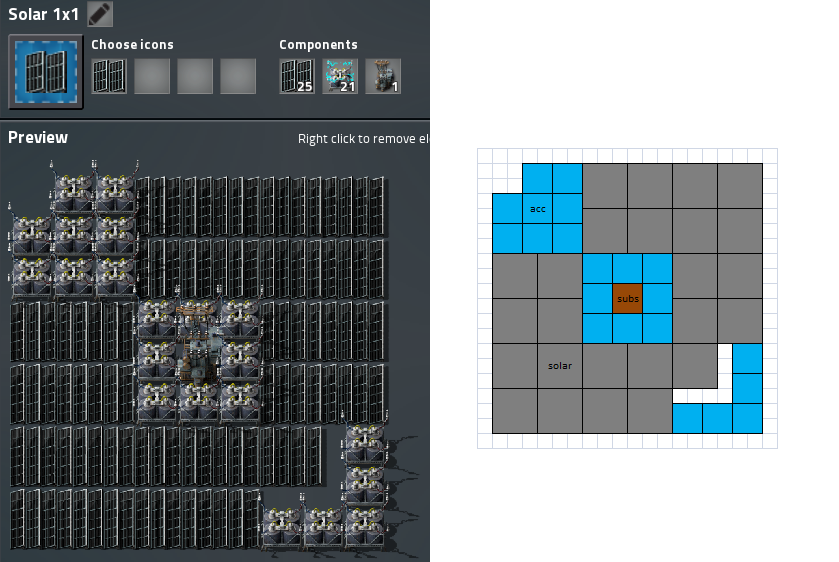

Substation has the highest coverage to footprint ratio. Can 25 solar and 21 acc fit into a substation?
>>Tile usage = 25(9) + 21(4) + 4 = 313 tile
>>Substation coverage = 18 * 18 = 324 tile
In theory, yes. After some tweaking, i manage to fit them together.
Hereafter, i will call this 1x1 unit (18x18 tile) this is the building block.
2x2 unit

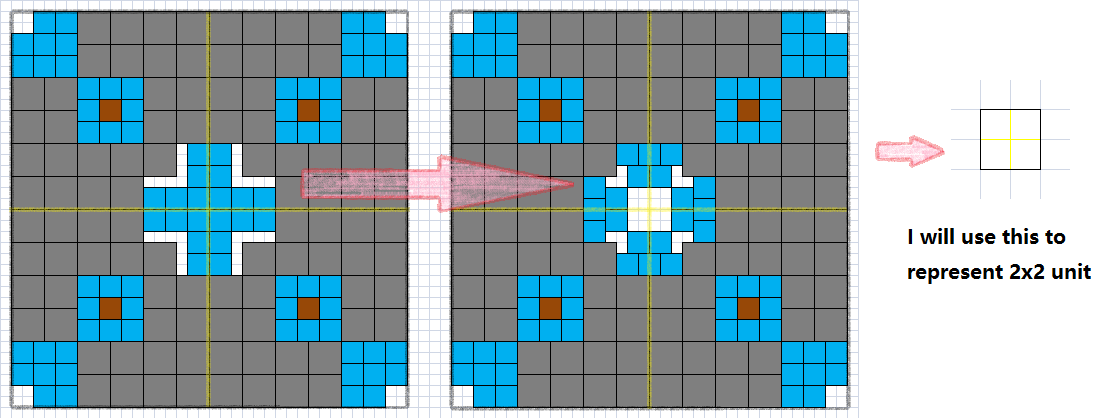

Rotate and arrange into 2x2 unit, rearrange some acc in the middle. Now roboport can be placed in the middle.
Notice that every corner has 2x2 tile, these space is reserve for radar, and server as visual marker as border of 2x2 unit.
If u prefer, there are spaces for chests and lights too.
Radar and Roboport, beyond 2x2
Not every 2x2 unit needs radar and roboport.
The next goal is make bigger tileable blueprint using 2x2 as building block.
>>Some restrictions:
>>-radar covers 12x12 unit (7chunk * 32tile/chunk / 18tile = 12.444)
>>-radar should always goes to 4 corner for any blueprint, this gives vision to the edge for future extension.
>>-roboport covers 6x6 unit (110tile / 18tile = 6.111)
>>-roboports connect each other within 2x2 unit range (50tile / 18tile = 2.778 -> 2 :()

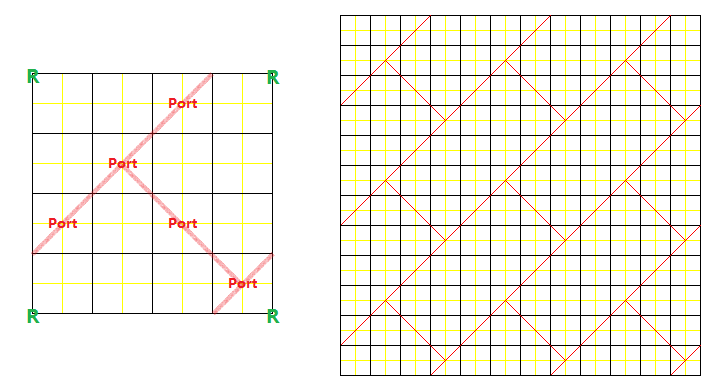

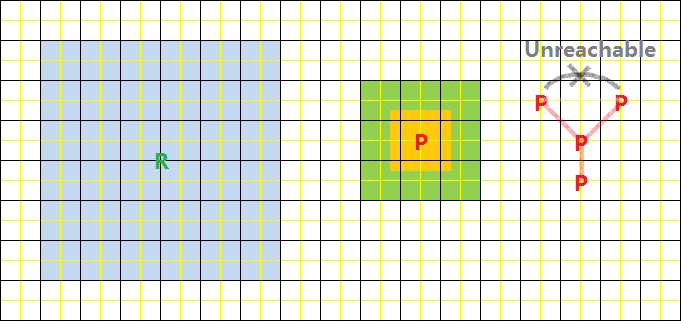

Below shows the coverage size and connection range. Each square is 1unit (18tile).
Notice that Radar (R) is placed on black crossing (corner) while roboPort (P) is placed on yellow crossing (middle).
While roboport can be placed on either corner or middle, radar should always be placed on corner.
8x8 unit (12.8unit : 1port)

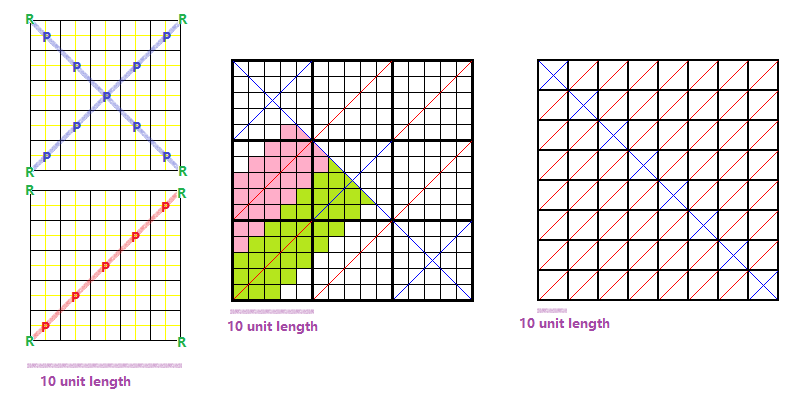

Although radar covers 12x12 unit, i realise that 12x12 blueprint is not the best choice, because 12x12 is SOO big that it cant fit inside my screen. I go for 8x8 instead. (Also radar is inexpensive)

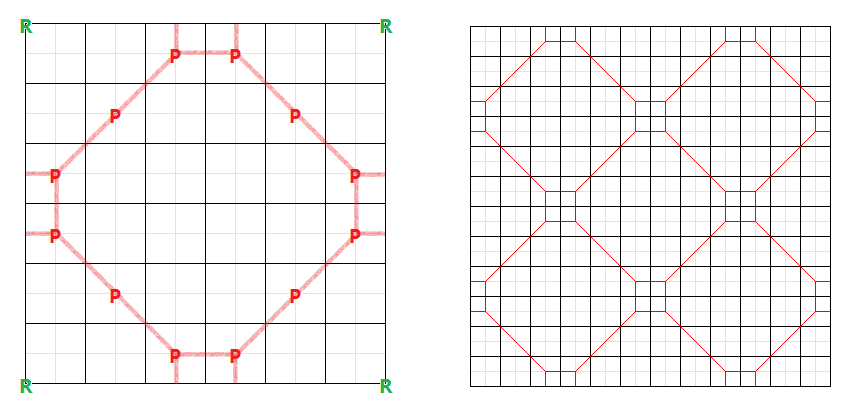

As for roboport, aiming for highest coverage to roboport ratio is quite a fun challenge. This is the best i can find. (12.8unit : 1port)
other possibilities
Top
mrvn
Smart Inserter
Smart Inserter
Posts: 5969
Joined: Mon Sep 05, 2016 9:10 am
Contact:
Contact mrvn

Re: Just another solar farm

Post by mrvn »

Does roboport coverage matter that much?

Sure you want it to build the solar farm. But if you put the farm on the side of your base, so bots normally don't go over it, then once build you don't need any ropoborts. Maybe keep them around the border to expand the farm or repair damage. But no need in the middle.

Same for radar, who needs a radar in the middle of the solar farm? Nothing to see there.

Other than that I like your methodical approach and design explanation.
