Mechanical etude. Research Lab in the smallest area.

Post by Lensato » Sun Jan 22, 2017 9:16 am

Good mood everyone!
I suggest your attention a mechanical task of creating a compact research complex.

A bit of history.
It happened I have been needed researching in very small area. It does not matter why, but the goal was an ecologically clean lab in the woods (for don't disturbing nearest bites). And was born the idea of maximum urbanization. After complete my challenge I thought it may be interesting puzzle for someone. The minimum area's size I reached is foursquare in 11 cells. I hope someone will be able to improve the result.

The goal: in region 11x11 cells organize autonomous research complex.

Elaborates:
1. Delivery of resources to the area conducted with a maximum of two underground belts (one for copper, one for iron plates). On which side of the transport belt the plates are, and if both types of plates served with on belt is your choice. Also available electricity. That is all. You can choose any position of underground belts and electric pole.
2. Take into consideration that the possible long-term cessation of feeding any of the three resources.
3. At a distance of 4 cells from a area should not be a single device / construction (based on the maximum length of the underground belt - 4 cells). Thus we maintain a maximum of trees.
4. The area should contain at least one working laboratory with red and green flasks.
5. It is believed that we have completed all the research that require only red flasks. And there are no other studies. Accordingly, we will use the most simple mechanisms and structures.
6. Welcomes any reduction in the required area (primarily) and electricity consumed (i.e. better to use two long inserters at 19kV than three common inserters at 13kV).

Below is an example of resource delivering into the territory and working laboratory that we aspire to.
P.S. My english is not good, so please let me know if I made mistakes.
Attachments
light down 2.png

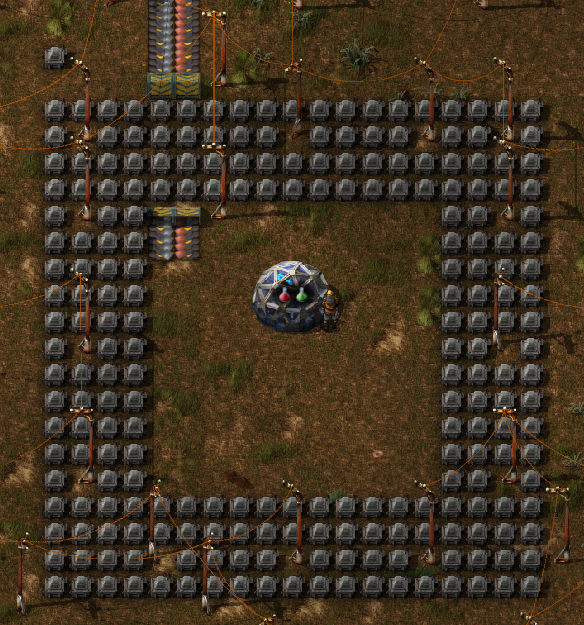

working laboratory
light down 2.png (806.96 KiB) Viewed 1579 times

User avatar
Nubm2
Inserter
Inserter
Posts: 45
Joined: Sat Mar 26, 2016 11:37 am
Contact:

Re: Mechanical etude. Research Lab in the smallest area.

Post by Nubm2 » Sun Jan 22, 2017 1:40 pm

Well, it works... looks kinda nasty though.

(EDIT: not legit due to medium poles which are green research)

Last edited by Nubm2 on Sun Jan 22, 2017 4:35 pm, edited 1 time in total.

Xeanoa
Fast Inserter
Fast Inserter
Posts: 169
Joined: Tue Apr 26, 2016 4:32 pm
Contact:

Re: Mechanical etude. Research Lab in the smallest area.

Post by Xeanoa » Sun Jan 22, 2017 2:51 pm

Nubm2 wrote:Well, it works... looks kinda nasty though.

5. It is believed that we have completed all the research that require only red flasks. And there are no other studies. Accordingly, we will use the most simple mechanisms and structures.
Medium Poles are a green research ;)

User avatar
Nubm2
Inserter
Inserter
Posts: 45
Joined: Sat Mar 26, 2016 11:37 am
Contact:

Re: Mechanical etude. Research Lab in the smallest area.

Post by Nubm2 » Sun Jan 22, 2017 4:18 pm

Xeanoa wrote:Medium Poles are a green research ;)
Oh... Well, it didnt work without them so i had to try again. :)
Trolling spoilers
[Edit: The spoiler tags are trolling me...]
EDIT2: Thanks :p
Last edited by Nubm2 on Mon Jan 23, 2017 10:07 pm, edited 5 times in total.

Lensato
Manual Inserter
Manual Inserter
Posts: 4
Joined: Sun Jan 22, 2017 5:11 am
Contact:

Re: Mechanical etude. Research Lab in the smallest area.

Post by Lensato » Sun Jan 22, 2017 4:23 pm

It is better hide answers under spoilers.
Better view and someone perhaps will not want see the answer before he tried.
Anyway good job. Next step is 10x11.

vtx
Fast Inserter
Fast Inserter
Posts: 150
Joined: Tue Jun 28, 2016 9:48 am
Contact:

Re: Mechanical etude. Research Lab in the smallest area.

Post by vtx » Sun Jan 22, 2017 5:46 pm

Here my attempt.

http://steamcommunity.com/sharedfiles/f ... =848102240

Unfortunately there is 2 poles required in the void zone.

User avatar
Nubm2
Inserter
Inserter
Posts: 45
Joined: Sat Mar 26, 2016 11:37 am
Contact:

Re: Mechanical etude. Research Lab in the smallest area.

Post by Nubm2 » Mon Jan 23, 2017 1:06 am

I've tried several setups for the 10x11 but all failed. Its just not enough room to insert stuff.


This is one example, all whats missing is iron for the belts (bottom center). Its even possible to change the setup around but the real problem is the southern pole. I'd need the all 6 squares between the assembling machines and therefore its impossble to power the inserter right next to the iron input. Even another input from the left wouldnt help, since there is only one possible point to enter anything into the belt machine. And i had the same (or very similar) problems with different builds. Im running out of tricks. :(

I have one more approach though... Trying to get iron gears and copper mixed on a second input after everything that needs those is satisfied, to finally feed the red science packs last. Maybe that will buy me some room.

Lensato
Manual Inserter
Manual Inserter
Posts: 4
Joined: Sun Jan 22, 2017 5:11 am
Contact:

Re: Mechanical etude. Research Lab in the smallest area.

Post by Lensato » Mon Jan 23, 2017 5:46 pm

Another approach is try buid in 8x15 (or something like this), couse 8x15=120 instead of 11x11=121 and area is most important resource. But I failed it too.

LaRone
Manual Inserter
Manual Inserter
Posts: 2
Joined: Sun Sep 04, 2016 8:22 pm
Contact:

Re: Mechanical etude. Research Lab in the smallest area.

Post by LaRone » Mon Jan 23, 2017 10:06 pm

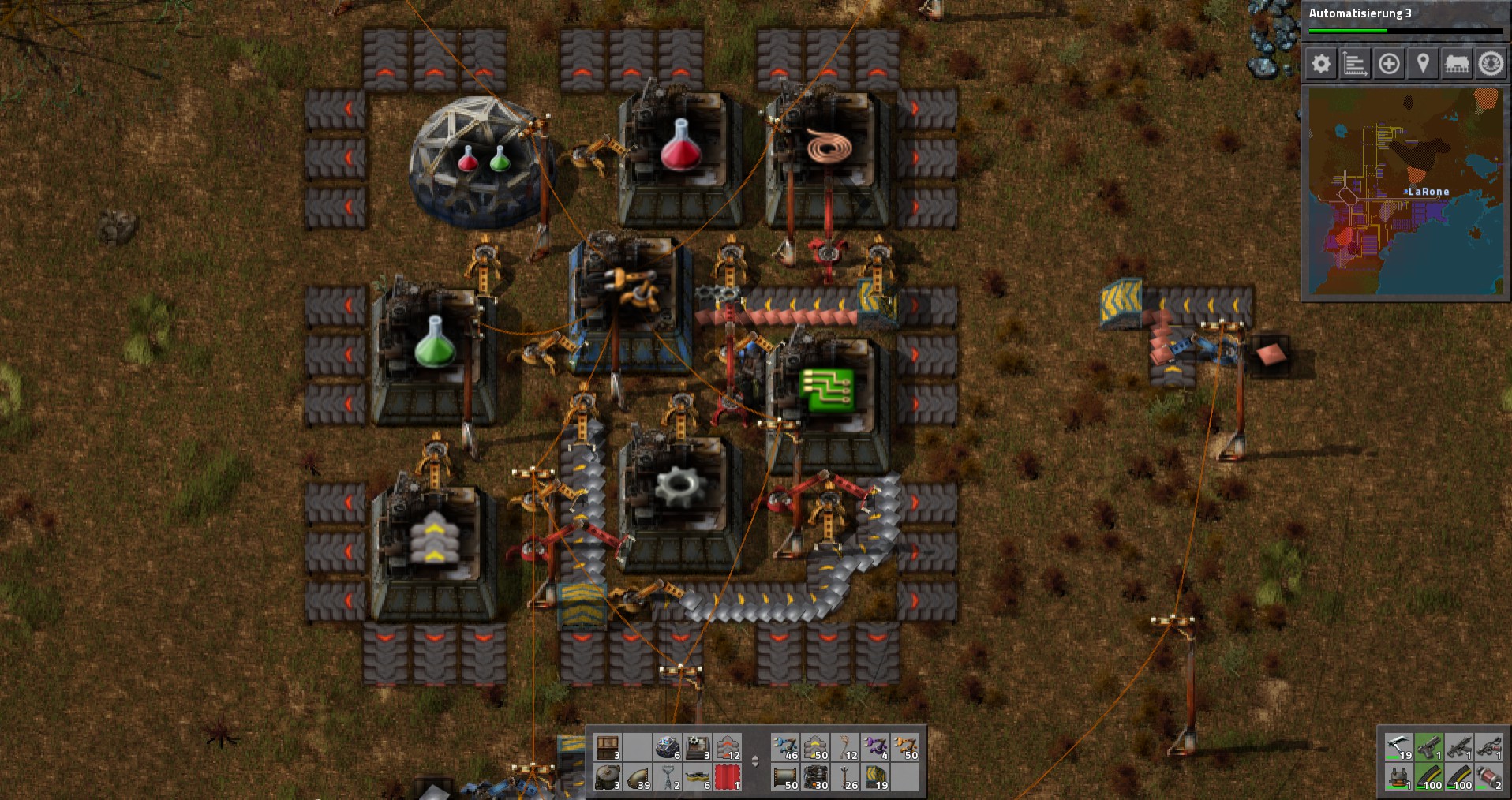

Well after one rather stressful hour i found this solution

User avatar
Nubm2
Inserter
Inserter
Posts: 45
Joined: Sat Mar 26, 2016 11:37 am
Contact:

Re: Mechanical etude. Research Lab in the smallest area.

Post by Nubm2 » Mon Jan 23, 2017 10:08 pm

15x8 is fun. :p
Spoiler 15x8
[Edit:] LaRone, thats beautiful!
Well, except for one little thing: You could have switched the red inserter and the pole in the south-east corner, therefore beeing able to use an orange inserter (which does not insert oranges at all) and save some precious power. :p
But still, love the design.

[Edit2:} Dang, made the same mistake. Got rid of the inserter on the left because its not needed.
Spoiler 15x8 II

Lensato
Manual Inserter
Manual Inserter
Posts: 4
Joined: Sun Jan 22, 2017 5:11 am
Contact:

Re: Mechanical etude. Research Lab in the smallest area.

Post by Lensato » Tue Mar 21, 2017 11:03 pm

Hello again!
I'm glad to inform, that 10x11 area solution was found.
Next step is 10x10 and laboratory with 3 flasks within. Green researches are available.

Reminder: if someone wants to place his decision, please let it be hidden under the spoiler.
