rotation/variations for selection box

[y.petremann]

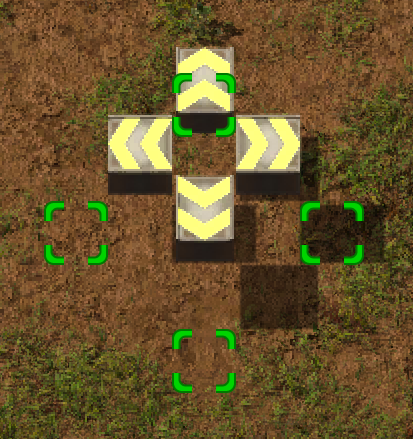

I'm making an elevated entity that is above ground and have 4 directions, I want to do things like elevated rails but with a "simple-entity-with-force"

Problem:

selection box rotate are only defined once and rotate with the entity

Code: Select all

selection_box = { { -0.5, -1.5 }, { 0.5, -0.5 } }


Possible solutions:

• Allow variation to selection_box:

  Code: Select all

  selection_box = {
    north={{ -0.5, -1.5 }, { 0.5, -0.5 }},
    east={{ -0.5, -1.5 }, { 0.5, -0.5 }},
    west={{ -0.5, -1.5 }, { 0.5, -0.5 }},
    south={{ -0.5, -1.5 }, { 0.5, -0.5 }},
  }

• Locking selection box to north:

  rotate_shift :: boolean optional
  Default: true
  Whether to rotate the selection_box alongside entity's rotation.

  Code: Select all

  rotate_selection_box = false

• Allow the use of selection_box_shift for any entity with variation/rotation like with RailSignals:
