Selector Combinator: Mode of Operation = Select Channel

[Christof Zedlacher]

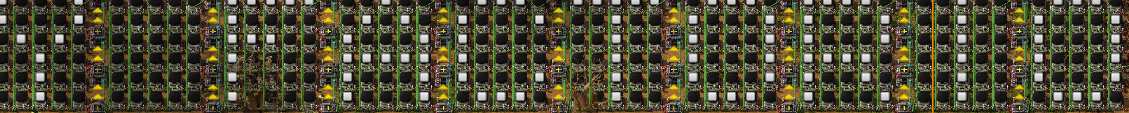

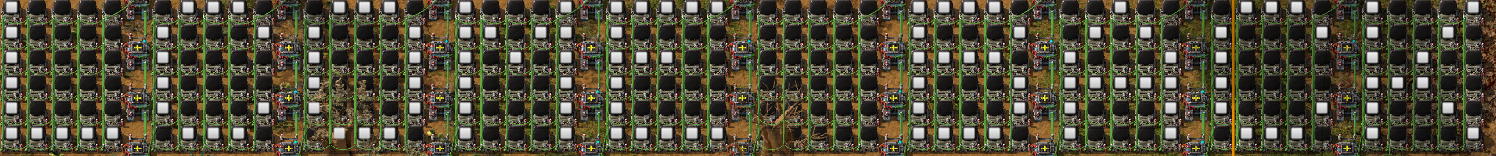

I'm making running texts in Factorio V2 (see image) and for that purpose I could use the Selector Combinator to have an additional mode to select sorted Channels instead of sorted values:

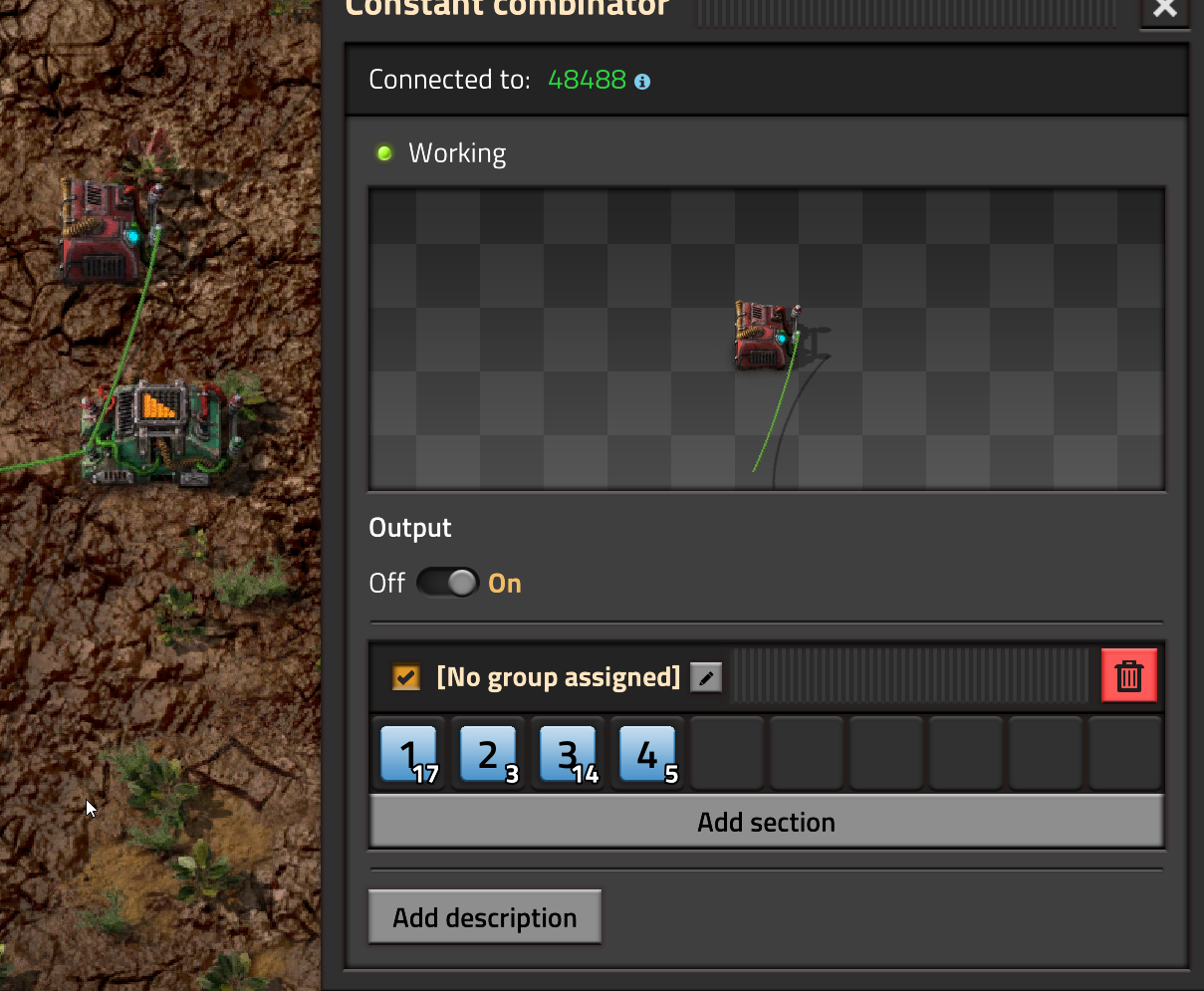

in that mode, if I define Channels 1 .. 4 in a Constant Combinator (see image) and select Channel 2 by Selector Combinator, the Selector would output the value of the 2nd Channel (sorted by Channel name), so the output would be the value of Channel 2 = 3.
My work-around for the missing mode needs n Decider Combinators, where n is the number of Channels defined, in my case 30.

[Tertius]

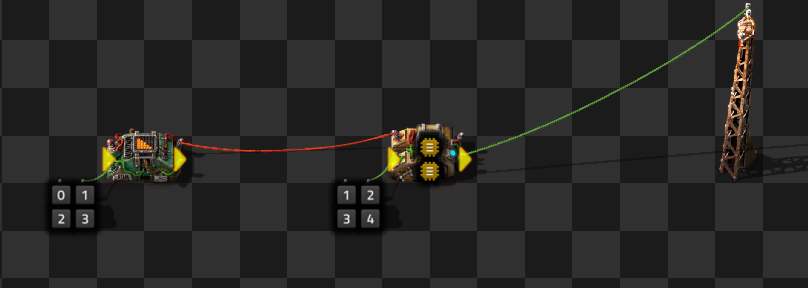

To perform the action, you need 1 selector combinator, 1 decider combinator and 1 additional constant combinator:

07-10-2025, 14-21-57.png (63.23 KiB) Viewed 110 times

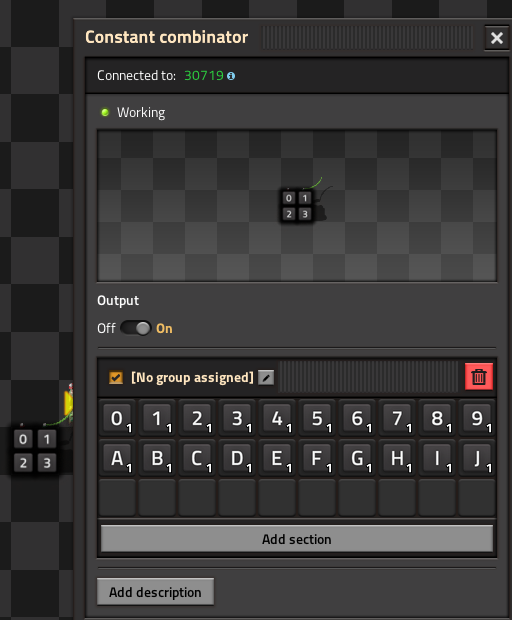

In the 1st constant combinator, you globally define all the signals you intend to handle. All with value 1, so a selector combinator will select by internal default order, which is well defined and stable.

07-10-2025, 14-22-56.png (67.33 KiB) Viewed 110 times

This will create a unique index for every signal, if you feed this to a selector combinator.

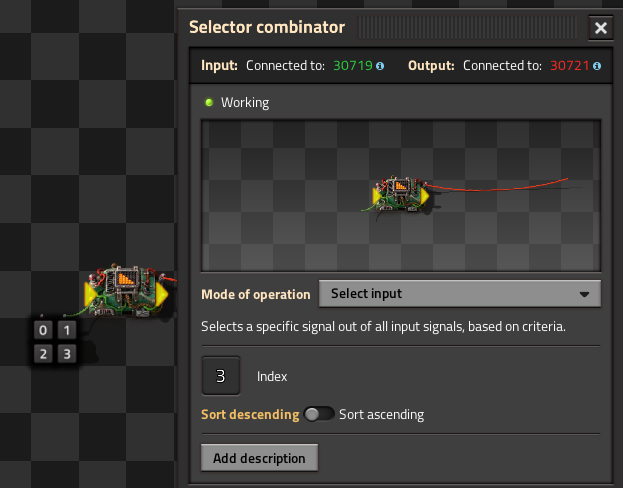

To pick the 3rd item (that's the signal 3):

07-10-2025, 14-24-09.png (63.76 KiB) Viewed 110 times

This maps index 3 to signal 3.

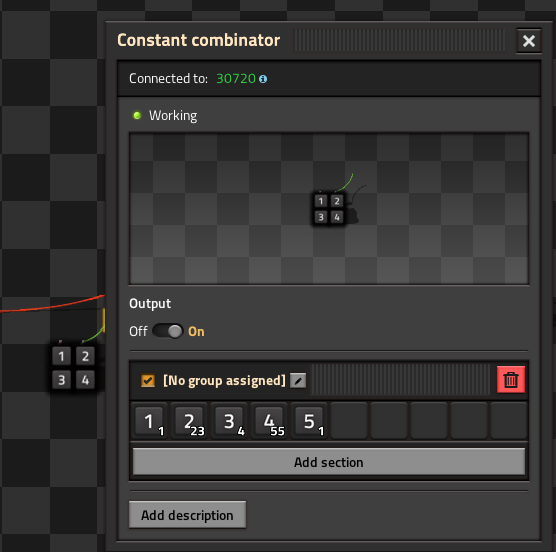

This ist the constant combinator with the values from where you want to pick:

07-10-2025, 14-25-00.png (49.5 KiB) Viewed 110 times

Notice the signal 3 has value 4. This is what we want to pick with the given value 3 in the selector combinator.

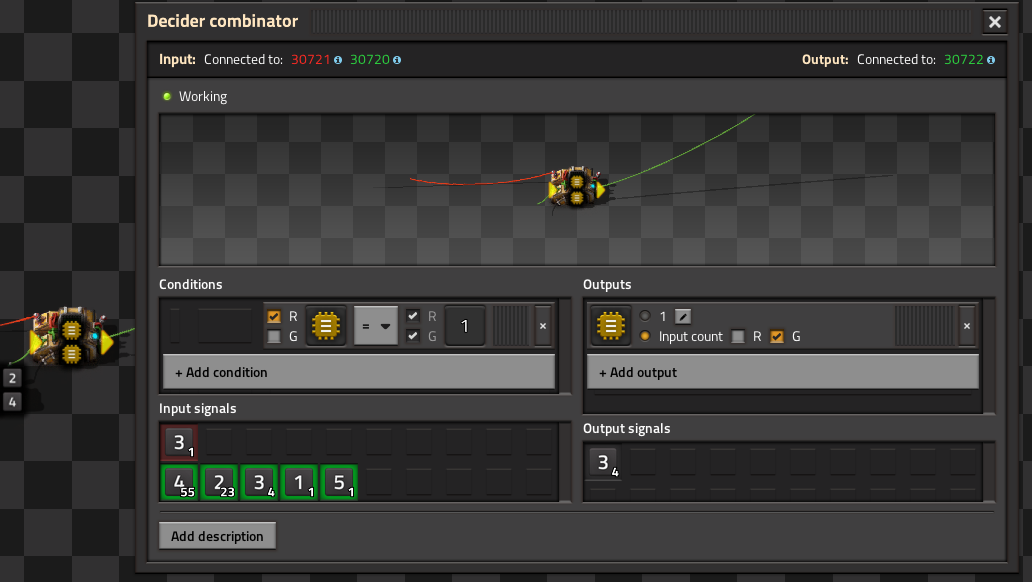

Finally, the decider combinator that performs the miracle:

07-10-2025, 14-26-25.png (93.17 KiB) Viewed 110 times

0eNrFl9uOmzAQht/F184qHBwCUi+6PfcVVhEiMLtrFWxqTLZRxLt37Byb0PUCqnoVM3i+Gc/415AdWZct1IoLTZId4bkUDUkedqThTyIrjU1kFZCEmDc6E3qWy2rNRaalIh0lXBTwiyReR3t8Csh5Aarfxe9WlIDQXHPYx7QP21S01RoUMumR00AJOXpfgiipZYO+UpiAyIsidNiSZBYu53cM4xRcoZfdEFKTv1ayTNfwnG04AtBL1qCy/Y5DDMTuF2mVIVOrFg4Jp8cCkCTozGmvsvXpK6fuSTYamuwBa/IoLKox1ssnLOEjV41Oz43Q29qktOFKt2g5V9TumEGWP5uWnM/mmYeqzpTNOyHv0OcSmgrQL1L9sMEVFMcaPSkAzP0xKxvoTGdlq+tWX1+mN+ZzE8RyT1FMSAzS9fUhODErKHhbzWw7Fc9ntSyhpxPL4I5d9qKHGdLXVHCLXMQnZBTb9vY1tNk3vPlzjeU6aspUvtSgrq2OIs7R8hNf4AnQKKSq7KabtuaytR03Bz5q0gn3xsMDJ9wfDw+d8GA8nDnh4Xj4wgln4+GRE74YD1864dF4eOyEL8fDvbmTHk+guzX6fgLdLdL7CXS3Sj9MoLtl+nEC3a3TTxPobqF+nkB3K/XLBLpbql8n0N1a/TZhJrm1+n0offWXjwc2cNBH7H8Oeu9fDvqBs9gPBk36gcM4HDTpBw5jxgaNejbusuEn8Qt+45sWP3jUpyH1VxRXAa49XPn4y6zNvEPrCj24hgpx5/9olGzwmtgbyBZ+HMYxi+Y+i2K/634D39GFiw==

Copy blueprint

[Christof Zedlacher]

YESS - thank you!!
That's it!

Works fine with my running text
