Assembler-3 Q-Shop; combinator for customizing + parameter to choose produced item

Lighthouse · Post by **Lighthouse** » Sat Dec 14, 2024 11:24 am

For producing specific highQ items, I usually create one assembler (or other prod building) for each Q. Setup is tedious on large scale, such as one shop for each armor equipment, so I prepared a parameterized blueprint, that I like to share - for tipps and feedback, and possibly for your pleasure if you deem it helpful.

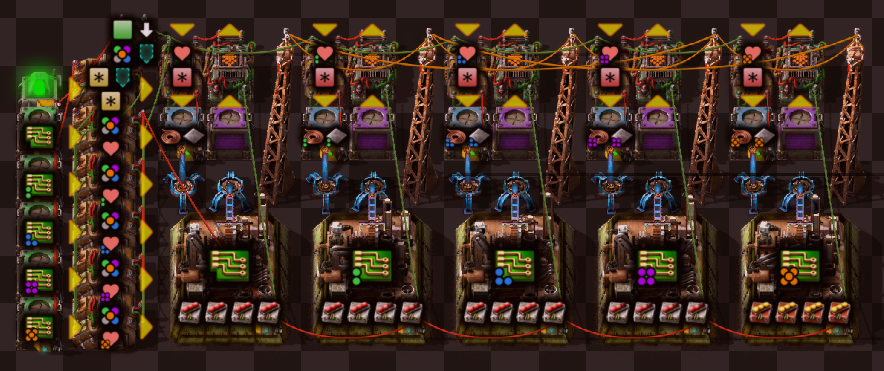

When placed it could look like this (mind: blueprint allows to choose what item to produce):

Feature List of Blueprint:

Named parameter to choose production item
Shop can be toggled on/off (via Constant Combinator toggle)
target production quantity can be easily set (via Constant Combinator) - delivered with target quantity = 1
toggle for: "each Q shall reach target quantity individually" vs. "lower Q shall stop if higher Q has reached target quantity" (via Constant Combinator toggle)
toggle for: "requestor chests shall always keep items requested while turned on" vs. "requestor chests shall send items away one target quantity is reached" (via Constant Combinator toggle)
lamp shows green, when turned on
output chests are on one side- allowing for easy access while stamping many of these very close to one another
facilities immediately stop producing when target quantity is met (rather than buffering in its output)
requestor chests request one stack of every item that is part of the recipe
power poles are not part of the wiring (minimizes accidents with other circuits)
produced items stored in buffer chests, which request a full chest at start - can (and have to) be limited by readjusting requested amount or open chest stacks (This works for me. But a compatible alternative for you could be: filtered Storage Chests. Exchange it, if desired)
if Q4 or Q5 are not researched and shall not be part of the build: it is compatible to delete Q4+Q5 elements in the shop/blue print
modules can currently not be parameterized and are omitted from blueprint
blueprint is stamped down in OFF state so modules can be set first before switching production on

Not yet provided:

blueprints for other facilities than Assembler3 (such as for Electromagnetic Plant)
blueprint to contain unbarreling of liquids (which I do in this kind of setup)
signals/proposals about when to recycle what

Code: Select all

0eNrtXFuvozYQ/isRT60E2xgbSCJtpb6sui9dVe3b0VFEgpNYyyVrIGfT1fnvHZtrEhIwm3TZLedpMtjj8efPw3iA80Vb+SndcxYm2uKLxtZRGGuLpy9azLah6wtd6AZUW2huHNNg5bNwawTuesdCamDtVddY6NHP2gK96vVOyXEvOh0YT1LQ6IWVrIXhhkfjE1xgybFmwzy1kXfZuxyEhHID1dri12ddo2HCEkYzj+WP4zJMgxXl4FA1ZuD6vuG7wR782EcxdIlCMYAwM0VvLF07agsDz95YYB8QSHjkL1d05x5YxEXDNePrlCVLGrorn3raIuEp1Us1dPFKoxvG42TZGYktpzTUsnHjxBXLMBU/AjHtRAyv/SoupzGFcfyIx9norwKrsymbpXGPrpkHiIGdFQulnYap45OJe4zTdXadNMOQW63mG0twar+elOdPgUtifjEVdi77ZVOsurGEBgann1IaJ8aeR5+PGXgneOknXixDmrxE/KP0llfLl0G/2Lh+TM89uOwjm5WdsiUACkZpsk+T8z3TcdLraH8ENNMwWW54FCxZCLYKj55fm9YYl7YKwrQtcsnv+VV+x9nCx6cyzKjY3AJQH7bgubYTuXWt2OoLLYx4IBuerNhbqUgF+ZEAdcujdA/6v6Pt1qeTD3/88uHdu8km4pO/dpHYxS74eKDl2pUumS2OdmCTqre10bEqTF70Ehou59HLV4D0kdL9REwknuQzod7kZcckcFrNPdJzFevBur+b7yFKHJgHvSc+C1gy+ekQv5n8zra7PzNF/LN2hfNEMa6RivKncW3238W1HXV5chrXUQNSt+NUU8zR73GLuXRFxW6Ntq0TzBR0mdtyQ0/rHzYPlB8TSD22YtwuUf0KoazKMvWBHFEbo6wTRjVxKNpTmLbsowEc649GzP6hWtPotiKdncHQub770xC8DqJw5PgwOe6ocnx2T47P1DiOpoPkOIdVHfk9TH7PFfmN0D35jaaKBMeDJDjds/VI8GESHCFVhpO7MlyxmoDsQTLcp1saei4/jjQfKM2xKs2du9K8Olyu0s1GsHwHR+jblUK7tVJY0riqGRZ1pvyQvizP4oo1l4ayaGNefuNcPpV/sCCw+gl3490yjJJlWT24XmFEVg+0nAGj1V7D6I+V3bMca3/DcuxZYV49njwoJHYerOvueH3YfC4g7B3bv1eAWoaoTlUPMV/ltA8xf5ZQPPAW21ZzUX52gJyeEckZI9Jd+TQGn7tgMYay7yuU9YxaVS1x48aJwcKYcpjM7Sc/IolqMjbvbsw6y/frR9qmp+9VSajIDm+kx0QhPQ4ijy6jzbJ2rEF6a/J85f2EmwdPhYT7Zj5cMyNWOTsr3HpzocrUs0e74mHsIbtDXUPQOkGwyWhVwQiox9LAkOdLztbGPvJpk027jT8m7s4fp9UYUWGMMzKmjp3VfSFmihvZVubNvHWpHXWCz1oJ3j0y1h6wXPOwe2RESA1QrBIZa56OPBd4KBMHoTbiYOXIiMw2/uDukbH2MOSaMZXIWDM3Mgbw6B4ZEVHcyMqREVmtS60eGRFpJbhCZGy952OFyOioAUqUIqM98ryOXY/I6LQRh6hHxlkbfwjuUTQnAy6ay2PpI0rmpM/DGGvASMn6wEOQsnqW8shYyhtsueaHfrDwA5flq6kpF7dI34eE1riPB1vV/aH38Vjy/vq3SdXDRO2Q1PQd3s3yKPkW37V1+v5BJmCuBwgAhT0Gky7yfXFhzfaXS5mplxdvcDSBNlMGbTYE0Pq8ZX8PJGtjXWI5V8USoaFh2eVt7nvgmI9z+dXJVBlDMjQMu7wwfA8M83EuMUTKGDpDw7DzK6n3ALI+2CWaZo/zNh7webua7SMO3RbumazjMVkfUEb3f8vYv2XOezZ2S+IL477AJhGjPiEd6VhHz/qTCRKyctEEpSkloiNHiqCAH4WUK+GqbulYSqZu5zp5mUgR2k6lTUt0zzrZ0MmRnaCDPst10JLIlo5omWln0HIuW86E0WmuxDrOjM5F07nUwkXwH8nGoqGOzEIPzTPLcNnUrcwKkvPFWXsxXZKZRGJ2cP+TbUiFiZRJbseuEJAysQsZCz0uZNDnMikgkTLopeyINk6GOYyqm7ZuFTLOZVvIZiWTTMa1NrimJ7jyU8pw95GyVfkpZQsXcumnlC1cyKWfUga9lB1hf5bZFOsD+Et5LsbK11qsBWCInoFq5X7JWJ5zm3kVrd8nNJgk0WTPIy9di0ouXL2y0YyTJKH9DXPJdvHZvrj5lv+DRdd8d0Vhr2lP+SYzsr319jIUPUv3fsvSIHHHO8BU5PiWbc7JfG6RuTmzyfT19V8PtsJw
