Belt Input Equalizer

[willmax]

So this is a belt and splitter setup that draws materials input equally regardless of the output.
The layout is simple, just out an extra splitter after a normal lane balancer and set the outlet priority of that splitter into the main line.
Then connect the other outlet of that splitter to the other input of the first splitter with belt.

Any thoughts and opinions would be apreciated.

[mmmPI]

When i see this i expected the left side of the input belt (from the belt point of view looking at the flow going away) to stutter.

It took me quite some time to realise that some of the input is switch from the left side of the belt to the right side of the belt when sideloading before the second splitter.

I'm still unable to explain/understand why there is seemingly 1.5 belt flow going in the first splitter, and only 1 belt flow between the 2 splitters, while the input doesn't stutter.

thanks you just made me curious about what it would look if instead of 2 iron lane it would be 1iron and 1 coal on the input belt, i will try that because my brain tells me my eyes are not seeing it right on the picture

[disentius]

Aha, hadn't seen that one before. Nice!

Here are some other versions, i picked up over time on these forums en reddit.

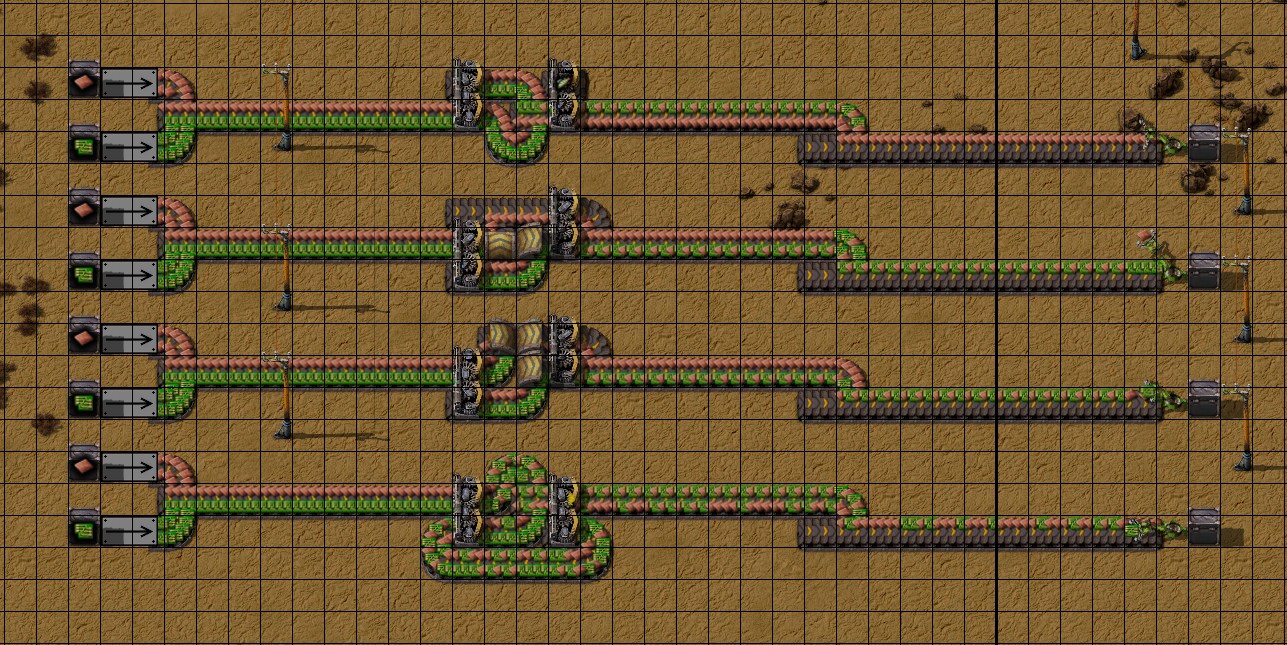

1-1 lanebalancer variations.gif (2.89 MiB) Viewed 13884 times

(settings for the top one:)
- left belt -> enable if everything < 4
- right belt -> read belt contents - hold

You can find a lot of info about balancers via the Wiki:
https://wiki.factorio.com/Balancer_mechanics

[willmax]

Aha, hadn't seen that one before. Nice!

Here are some other versions, i picked up over time on these forums en reddit.

1-1 lanebalancer variations.gif

(settings for the top one:)
- left belt -> enable if everything < 4
- right belt -> read belt contents - hold

You can find a lot of info about balancers via the Wiki:
https://wiki.factorio.com/Balancer_mechanics

Hi there, i have looked into many lane balancers but my setup above is just suit me well since it requires no underground and more space efficient to me.

[Trebor]

This also discusses lane balances:
viewtopic.php?f=202&t=74911

[Modran]

Hi there, i have looked into many lane balancers but my setup above is just suit me well since it requires no underground and more space efficient to me.

I tried it and it doesn't seem to be completely balanced. For me it takes twice as many parts from the jammed side than from the free one (which is odd because I thought you couldn't get a 2/3 ratio).

(By the way: the additional belts are more expensive than the two or even three saved undergroundies.)


[TopSpeedKertus]

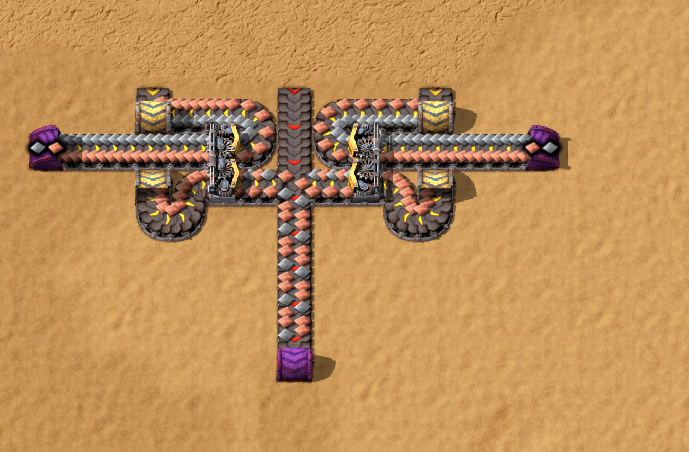

I hadn't paid much attention to this issue until seeing this thread. Here's a design I came up with that insures both sides of the input belt are being consumed equally. Can't wait for 1.1 so I don't have to manually create reversed version of my blueprints.

0eNrdml1P2zAUhv9K5KtNCqixE3/0fhe7nXY3TSilBiLaJEtcBEP974tT0WYjTnyOy5C4Qg3pc+xzjl/bLzyT1Wan66YozdWqqu7J8vn0pCXLH4OP9ndr3V43RW2KqiRL8j2/122kf+3yTVRXjX3aRjdNtY1WlbmL2qJ7PapuInOno6KsdyZa6Y25JDEprrtXe3xb3Jb5xrLNU607aGH0tnujzLf2k2nysrXsC/tVsu++Wq71I1km+58x0aUpTKEPpP7D01W52650073gYsSkrtriMIVnYlFMXGYxeSJLmiaXWRdjXTT6+vAG38ev0PSI3nWDaW6bqvvphHM3PI2Ps7bpISOxGGAaCjaNFICWMHQGQJ/yQ/9F0xE0R9WV+aAFsq7MXddqZxyFlah5eKVIHdFtvSmM6Z5NlpTNI5MFqg/tcMdoCYrmVcSEonov9WIzVNEs28pVL23LgaLGZJN3X++efbEiWvzuK/Wgm/YwBJmkIlWCi2TBM34Sv4Ud2/sK803emotzqHMPgq03jtBROjnyyfJxH8VjeL7wab0UyucwfvY33084JESuPcctYXkXUL6C8SWeL8bFT+E7RTnkdIFvDuWle0HLVWK2xyRgwUqgloMrOxLgnPKevL+868e60W17FoV/YXl0TXLsGiqCRN4x/pGIwh1xWuf9Q0hYiBQRQsFCZEGJUrBzOq7+CqMaImheXrohESE4LIQKagA5u0lgqNB94iXGxEFisC4U6FyPqC1bOLLCQsrZU99wI6DvvxH8FwPGmgoue4FO6vw8msHQgBuevd1C0CnEXrCXxgDbKEMl33Fd5ygYgx3fIZWksJM7BO01ai+DZdAebB4JMVgGveGViYEswzqPBZ7cIYlPZwUakpf0dV48hTn69E1bZdbrz14azT+aFwNZ4xym1mC+4woNvboN2oy/hdkyWOr8vGbLgCznFzrH50UgzBaYmGBcO6j7MggnYEIObk3ppbwLfEUkUNrBAVxuEsUnXXmNmYW0kYeb9EZKLz6mLTNbX5q4zQV6HheGMlgIxK2NUliIFONf0DTIv8qCiuO1+HhQCIe3IIIqrmCneUwICdsMPMyLQTsp0D6A6yaUG5ZgFnsKS1oStNrPacucRv7aloGf/v22BDnGvej/k+YE/9pr/TFEe37Bz7tpPuirl78OT4x8/wfTjtFN

Copy blueprint

[ssilk]

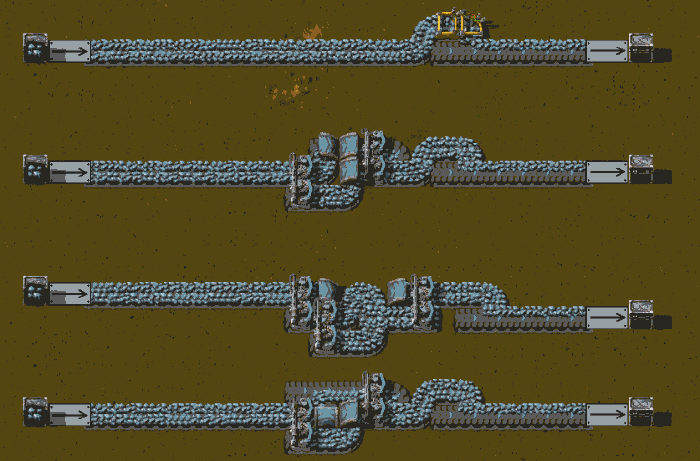

But that mixes just one lane. Not both. You see that clearly on the last pic, where only the upper belt is mixed.

[NotRexButCaesar]

Aha, hadn't seen that one before. Nice!

Here are some other versions, i picked up over time on these forums en reddit.

1-1 lanebalancer variations.gif

(settings for the top one:)
- left belt -> enable if everything < 4
- right belt -> read belt contents - hold

You can find a lot of info about balancers via the Wiki:
https://wiki.factorio.com/Balancer_mechanics

What is that one at the top?

[disentius]

using the circuit network capabilities of belts to drop items two at the time on one side of the belt.

[Trebor]

But that mixes just one lane. Not both. You see that clearly on the last pic, where only the upper belt is mixed.

The bottom lane is not mixed because the upper lane fills the output belt before it has a chance to be consumed.

[disentius]

nope.

[Trebor]

I misspoke, I should have said the bottom lane not mixing is not a problem because the upper lane fills the output belt.

This design works as long as the input belts are compressed and the input and output are the same speed.

[disentius]

agreed
