Shift register :)

[Nasphere]

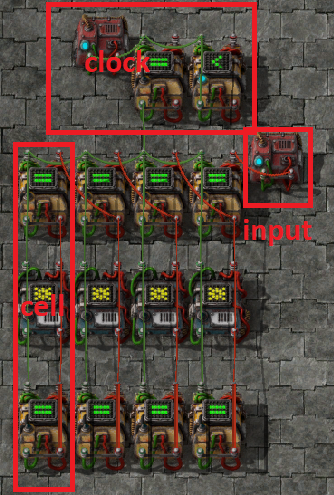

I got this idea being frustrated that other shift register designs only carry one signal, and most need to be 'primed'. This is a simple 3 combinator per cell shift register capable of transferring every signal minus the clock signal. In the example, the red wire on each cell is it's memory output, while green is the shared clock.

factorio shift register.png (291.85 KiB) Viewed 3879 times

0eNrtmd2uojAUhd+llxOc0PKjkpmnmMvJCUGoxybaklLMGMO7TwvGgwjSjSaeC240SLta1tfdvalntNmXNJeMKxSdEUsFL1D094wK9smTvflNnXKKIsQUPSAH8eRgrjKasozKRSoOG8YTJSSqHMR4Rv+hCFcfDqJcMcVoo1ZfnGJeHjZU6gZXHTOeSrhqCzkoF4XuK7gZXustdPuT/vL1EBmTNG3u+Y7prqTYxxu6S45M99UdtmyvqBx4iiOTqtS/XCfQtFhkQpkHSEVpjMCtR3EAKn9aGqHrXlVI9VHf4LyZe2G0sPn4lJTytkUs0811WybTkqn6UttZVWYeHRfJIxp3JrqNh97PwMrFi2Ss72XsOuctk4WKrf2gSbprLGko187qSeaJrCcZod+6jyhVXk5SzU9x7Xa8leIQM65lUKRkSSuI3bjlrbn27u13EBnsHtrR8kC08BtoXWKgoEYlhi76FtRfE6BeA/A1TDsMSQcxgSH27BD7IMQL0jDGb2D84oA8UnlSO8Y/JyKUNOtaHnQB6pTSyybosrklvR4k3TPo+m7QXs4BjDOeOQ9zDm05+485h49vYxeyDnyY2NA6Cack6HmZ9BFZvWg7II/zwmoEPIasogAmNrSKlrBi+ZJVyPO18m3Fz6TgCyFpu0wORurkWwW9EnIdAx0N36JKHl8QQyl5NaXqmkOwz/HlYMyN7b0EEjVAsaGoWV8tSSRTuwNVLLUpx1xL9l+qryy6v1aBqRqEDpekmQX6MbWmBpXNY4nPeyKLEguxPpIm2wJR4hnlaPbxn0hlxEKsFyWGonRnkqM7YvDE9kosxHpJEijJOSbHy8sQQnI1QtLyXAp7U04tyFtLJPeblkhrWMYbfosBnVpYJ1J/yrnFTLrXcxeWEYdRw04mrDNtMOHsYUbdazmGpcwHqEHHB9apOJzwjjuj7rWcwHLqA9Sgd97+XK216wOUqPUfrYP0Yxc1saXn4nVIsLcMq+o/KDZBOg==

Copy blueprint

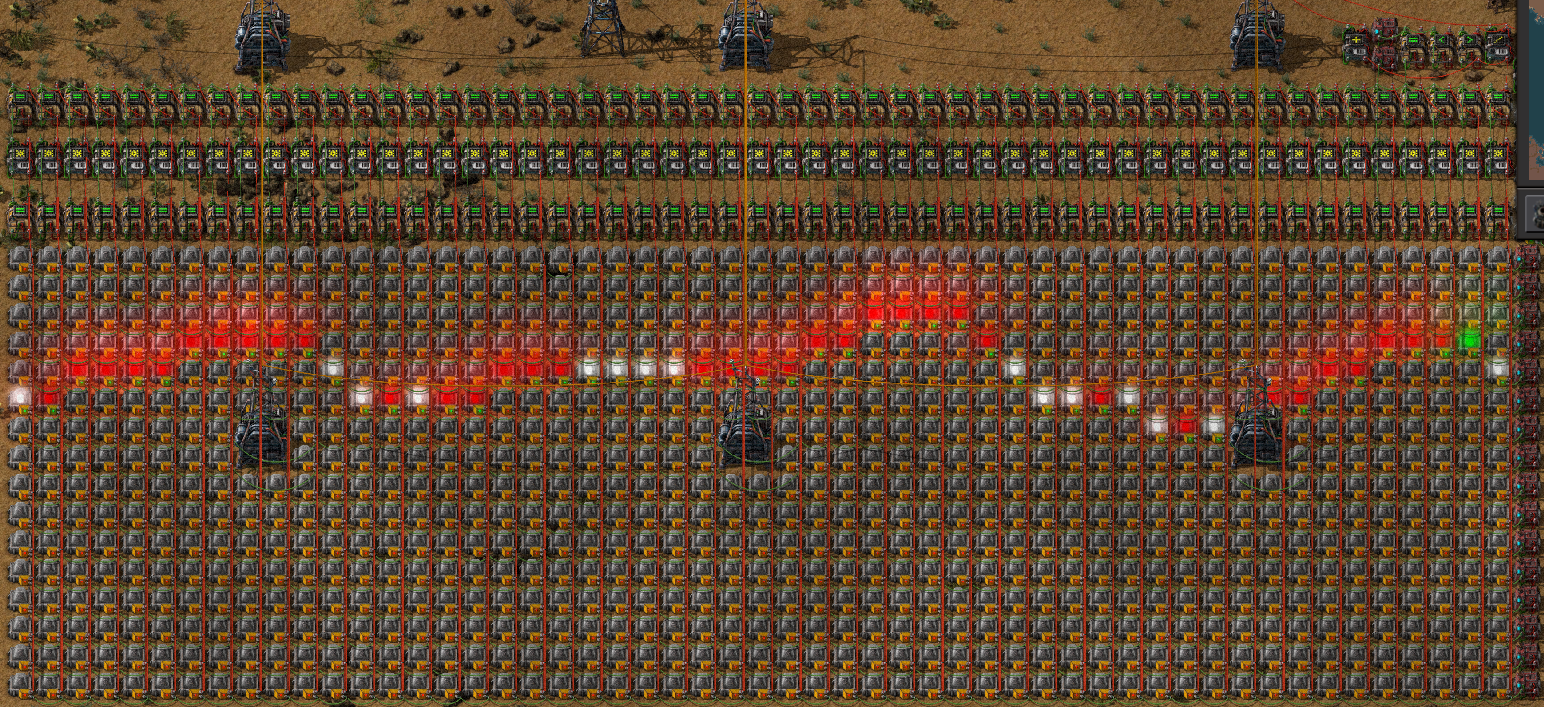

An example of how it can be used, this is a display to show steam of a reactor, and when it's fueled. Notice it can carry color values per cell as well

factorio shift register2.png (2.72 MiB) Viewed 3878 times

[lm00]

This is awesome, works like a charm! Thank you for sharing
