How to load 4 blue belts per wagon?

Smart setups of railway stations, intelligent routing, solutions to complex train-routing problems.
Please provide - only if it makes sense of course - a blueprint of your creation.
Post Reply
Copy link
User avatar
disentius
Filter Inserter
Filter Inserter
Posts: 694
Joined: Fri May 12, 2017 3:17 pm
Contact:
Contact disentius

Re: How to load 4 blue belts per wagon?

Post by disentius »

@Eradicator:
Pickup speeds from belts are counter-intuitive at the moment. Inserters always pick up from the nearest belt lane first.[EDIT] Inconvenient, when outer lane provides more i/s... :mrgreen:
Example: (moving average contraption stolen from vanatteveldt here)



i/s -> values/100 (16.01, 13.32 etc)

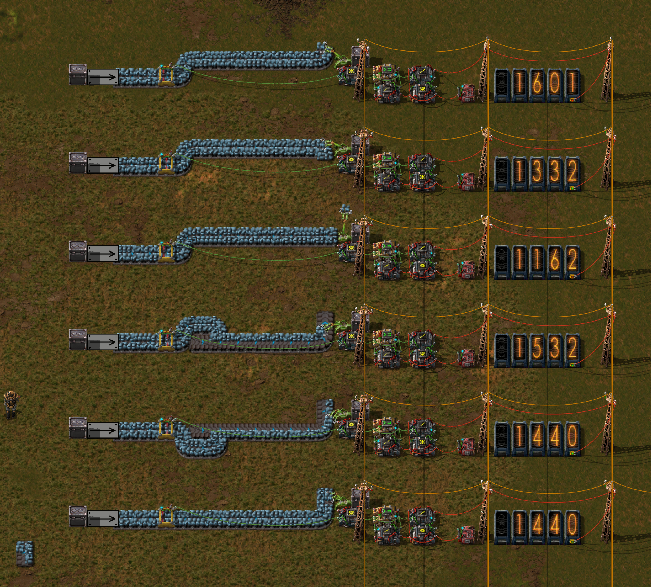

belt to chest timings.png
belt to chest timings.png (859.54 KiB) Viewed 9712 times
Last edited by disentius on Wed Sep 11, 2019 7:51 pm, edited 1 time in total.
Top
mrvn
Smart Inserter
Smart Inserter
Posts: 5860
Joined: Mon Sep 05, 2016 9:10 am
Contact:
Contact mrvn

Re: How to load 4 blue belts per wagon?

Post by mrvn »

A few cases are missing. How does a straight belt with just left or just right lane filled and curves with just inner or outer lane filled (both directions) compare?
Top
User avatar
eradicator
Smart Inserter
Smart Inserter
Posts: 5207
Joined: Tue Jul 12, 2016 9:03 am
Contact:
Contact eradicator

Re: How to load 4 blue belts per wagon?

Post by eradicator »

@disentius
How long of a timspan is that the average of? It seems very unlikely to me that an inserters grabbing from a curve with both lanes filled is 5% faster than one where only one lane is filled. The -30% of the "direct belt" case is pretty shocking too.
Author of: Belt Planner, Hand Crank Generator, Screenshot Maker, /sudo and more.
Mod support languages: 日本語, Deutsch, English
My code in the post above is dedicated to the public domain under CC0.
Top
mrvn
Smart Inserter
Smart Inserter
Posts: 5860
Joined: Mon Sep 05, 2016 9:10 am
Contact:
Contact mrvn

Re: How to load 4 blue belts per wagon?

Post by mrvn »

eradicator wrote: ↑Wed Sep 11, 2019 4:20 pm @disentius
How long of a timspan is that the average of? It seems very unlikely to me that an inserters grabbing from a curve with both lanes filled is 5% faster than one where only one lane is filled. The -30% of the "direct belt" case is pretty shocking too.
Remember: inserters chase items.

The straight case has the inserter chasing items along the length of the inserter so it has to shorten and lengthen. That's painfully slow. So those numbers didn't surprise me that much.


Another thing to test: yellow, red and blue belts in comparison. How much doe the belt speed affect the difference for each configuration?
Top
User avatar
disentius
Filter Inserter
Filter Inserter
Posts: 694
Joined: Fri May 12, 2017 3:17 pm
Contact:
Contact disentius

Re: How to load 4 blue belts per wagon?

Post by disentius »

@Eradicator:
20 minutes on 200x game.speed
Multiplying count by 6000 to get 2 decimals and output per second
Smoothing factor -> 8000
Please verify my measurements , and the setup. I could be wrong :D
[EDIT]
And because of this:

inserter pickup detail.gif
inserter pickup detail.gif (1.22 MiB) Viewed 9672 times

Its faster, i think.

@mrvn:
Correct, not all variations tested. That is why wrote: "Example" :mrgreen:
Top
User avatar
disentius
Filter Inserter
Filter Inserter
Posts: 694
Joined: Fri May 12, 2017 3:17 pm
Contact:
Contact disentius

Re: How to load 4 blue belts per wagon?

Post by disentius »

@mrvn: it gets weirder.
( btw, these values fluctuate about as much as the value in the animated gif above.)

belt to chest timings2.png
belt to chest timings2.png (1.53 MiB) Viewed 9666 times
Top
User avatar
eradicator
Smart Inserter
Smart Inserter
Posts: 5207
Joined: Tue Jul 12, 2016 9:03 am
Contact:
Contact eradicator

Re: How to load 4 blue belts per wagon?

Post by eradicator »

Just noticed that there's an extra belt on the 1533 one that the 1600 one doesn't have. Thus the 1600 has to do less work chaising the items because the possible area for items to grab within the source tile is smaller on the inner corner of a turning belt than it would be on a straight belt. That actually makes it *less* weird for me. It all looks very consistently like inserters spending more time on retract/extend are significantly faster (as rotate isn't as slow as rotate/extend).
Author of: Belt Planner, Hand Crank Generator, Screenshot Maker, /sudo and more.
Mod support languages: 日本語, Deutsch, English
My code in the post above is dedicated to the public domain under CC0.
Top
User avatar
eradicator
Smart Inserter
Smart Inserter
Posts: 5207
Joined: Tue Jul 12, 2016 9:03 am
Contact:
Contact eradicator

Re: How to load 4 blue belts per wagon?

Post by eradicator »

1600 quite obviously benefits from the second lane. 1333 refuses to grab from the inner corner.
Evil twist: The mere *existance* of more belts makes it slower.
Author of: Belt Planner, Hand Crank Generator, Screenshot Maker, /sudo and more.
Mod support languages: 日本語, Deutsch, English
My code in the post above is dedicated to the public domain under CC0.
Top
User avatar
disentius
Filter Inserter
Filter Inserter
Posts: 694
Joined: Fri May 12, 2017 3:17 pm
Contact:
Contact disentius

Re: How to load 4 blue belts per wagon?

Post by disentius »

Yep.
Thanks for taking the time to test the test setup.
Do you think we should we report this as a bug?
Top
User avatar
eradicator
Smart Inserter
Smart Inserter
Posts: 5207
Joined: Tue Jul 12, 2016 9:03 am
Contact:
Contact eradicator

Re: How to load 4 blue belts per wagon?

Post by eradicator »

disentius wrote: ↑Wed Sep 11, 2019 9:05 pm Yep.
Thanks for taking the time to test the test setup.
Do you think we should we report this as a bug?
Didn't test it so much as use it. Can't guarantee the numbers are correct. Also you're using the nixie tubes mod with the lower download count *gasp* :p.

Nah. Inserters are batshit crazy like that. It was also on the "controversion opinions" FFF about "disabling inserter chasing". They have all kinds of - literal - edge cases, depend on the direction you built them, etcpp.
Author of: Belt Planner, Hand Crank Generator, Screenshot Maker, /sudo and more.
Mod support languages: 日本語, Deutsch, English
My code in the post above is dedicated to the public domain under CC0.
Top
User avatar
eradicator
Smart Inserter
Smart Inserter
Posts: 5207
Joined: Tue Jul 12, 2016 9:03 am
Contact:
Contact eradicator

Re: How to load 4 blue belts per wagon?

Post by eradicator »

Btw the wiki page on inserters has a blueprint for timing the inserter directly. Using that i measured that NWE inserters on the inner curve take 45 ticks per swing, so (60/45)*12=16i/s. While the S inserter takes only 43 ticks for a whooping 16.74i/s.

I also tried to abuse clocked inserters to get implicitly balanced loading, but misearably failed - only reaching 80i/s total throughput. With the old belts that would've been a success :P. With a double clock it might still work.
Author of: Belt Planner, Hand Crank Generator, Screenshot Maker, /sudo and more.
Mod support languages: 日本語, Deutsch, English
My code in the post above is dedicated to the public domain under CC0.
Top
Vegemeister
Long Handed Inserter
Long Handed Inserter
Posts: 85
Joined: Sun Dec 04, 2016 9:18 pm
Contact:
Contact Vegemeister

Re: How to load 4 blue belts per wagon?

Post by Vegemeister »

I remember reading something from the Bob's Inserters discourse about inserters with configurable pickup and drop positions being fastest when both are as far as possible from the inserter base. Apparently the inserter speed limit applies to angular speed, or something like that.

The best vanilla inserter pickup configuration I was able to find was deadend sideload onto yellow belt, at 37 ticks/swing, like so:
The sideload lets the inserter pick from both lanes at the same time, and the yellow belt makes the items easier to chase. Either replacing the yellow belt with blue, or reversing one of the belts, slows the inserters to 38 ticks/swing.

The fastest dropoff I know, priority splitter from the side, is also 37 ticks/swing, so that's probably close to the limit.

With some tweaking, this method yields a 2-belt-per-side loader with only one splitter in the item path:
Belt buffer lengths between splitters and sideloads cannot be any shorter. Maximum chest imbalance is 1.546 to 1.

Just ramming a wall of blue belts into a yellow on the side of the train like this gets ~6821 items/minute, which is a little over 2.5 blue belts of throughput:
So theoretically 5 belts/wagon could be done without extra chests. But I woudln't try it with 5 actual belts. It'd work great if you have an infinite-productivity-powered ore patch with a wall of belts coming off it already, though.
Top
User avatar
eradicator
Smart Inserter
Smart Inserter
Posts: 5207
Joined: Tue Jul 12, 2016 9:03 am
Contact:
Contact eradicator

Re: How to load 4 blue belts per wagon?

Post by eradicator »

Vegemeister wrote: ↑Thu Sep 12, 2019 2:30 pm Apparently the inserter speed limit applies to angular speed, or something like that.
Inserters have two distinct speeds.

Code: Select all

extension_speed = 0.07,
rotation_speed = 0.04,
So as far as i know the "trick" is to reduce the extention time by having the pickup and dropoff points be equally distant from the inserter base. Because it's not one motion but two:
Pickup -> Extend -> Rotate -> Retract -> Dropoff
Would be kinda nice if the inserter could retract *while* rotating...
Vegemeister wrote: ↑Thu Sep 12, 2019 2:30 pm The best vanilla inserter pickup configuration I was able to find was deadend sideload onto yellow belt, at 37 ticks/swing,
Beatiful. I applaud the use of yellow belts to reduce chasing :D.
Author of: Belt Planner, Hand Crank Generator, Screenshot Maker, /sudo and more.
Mod support languages: 日本語, Deutsch, English
My code in the post above is dedicated to the public domain under CC0.
Top
mrvn
Smart Inserter
Smart Inserter
Posts: 5860
Joined: Mon Sep 05, 2016 9:10 am
Contact:
Contact mrvn

Re: How to load 4 blue belts per wagon?

Post by mrvn »

They do extend/retract while rotating afaik. It just takes longer for more than half a belt adjustment or when chasing an item.
Top
foamy
Filter Inserter
Filter Inserter
Posts: 432
Joined: Mon Aug 26, 2019 4:14 am
Contact:
Contact foamy

Re: How to load 4 blue belts per wagon?

Post by foamy »

eradicator wrote: ↑Wed Sep 11, 2019 8:40 pm 1600 quite obviously benefits from the second lane. 1333 refuses to grab from the inner corner.
Wonder if it's related to this issue:

viewtopic.php?f=48&t=74947
Top
User avatar
disentius
Filter Inserter
Filter Inserter
Posts: 694
Joined: Fri May 12, 2017 3:17 pm
Contact:
Contact disentius

Re: How to load 4 blue belts per wagon?

Post by disentius »

Somebody on Reddit just posted the same solution as Vegemeister .... :mrgreen:
https://www.reddit.com/r/factorio/comme ... /?sort=old

@Foamy: yes, i suspect it's related.
Top
User avatar
eradicator
Smart Inserter
Smart Inserter
Posts: 5207
Joined: Tue Jul 12, 2016 9:03 am
Contact:
Contact eradicator

Re: How to load 4 blue belts per wagon?

Post by eradicator »

foamy wrote: ↑Thu Sep 12, 2019 10:05 pm
eradicator wrote: ↑Wed Sep 11, 2019 8:40 pm 1600 quite obviously benefits from the second lane. 1333 refuses to grab from the inner corner.
Wonder if it's related to this issue:

viewtopic.php?f=48&t=74947
During my trials i noticed that inserters actually change their "preferred lane" sometimes, when the belt becomes completely empty (or deconstructed) for a few seconds.
Author of: Belt Planner, Hand Crank Generator, Screenshot Maker, /sudo and more.
Mod support languages: 日本語, Deutsch, English
My code in the post above is dedicated to the public domain under CC0.
Top
User avatar
eradicator
Smart Inserter
Smart Inserter
Posts: 5207
Joined: Tue Jul 12, 2016 9:03 am
Contact:
Contact eradicator

Re: How to load 4 blue belts per wagon?

Post by eradicator »

disentius wrote: ↑Thu Sep 12, 2019 10:12 pm Somebody on Reddit just posted the same solution as Vegemeister .... :mrgreen:
https://www.reddit.com/r/factorio/comme ... /?sort=old

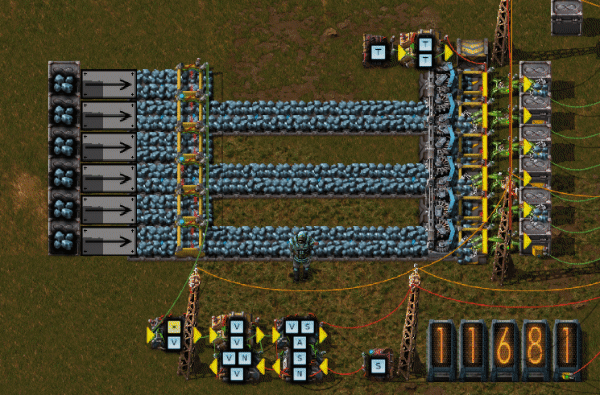

I actually tried my luck at circuits too, but was too impatient/stupid to find a working solution. It certainly looks neat how the inserters swing in perfect sync. BUT, when i attach my belt-speed-o-meter to that i measure the total belth throughput to an actual cargo wagon as "only" 105.1i/s, and not ~116i/s like the reddit post says. Furthermore if i *remove* the circuits i measure 110.5i/s. Though i wouldn't be suprised if the circuits actually make it slightly more UPS friendly. And they most certainly make it more balanced.

Ofc i can't guarantee that my counter is even correct, so if anyone wants to poke it. Number of active lamps = Number displayed. Averaged over 60s,15s,1s respectively top-down.

Attachments
Author of: Belt Planner, Hand Crank Generator, Screenshot Maker, /sudo and more.
Mod support languages: 日本語, Deutsch, English
My code in the post above is dedicated to the public domain under CC0.
Top
User avatar
disentius
Filter Inserter
Filter Inserter
Posts: 694
Joined: Fri May 12, 2017 3:17 pm
Contact:
Contact disentius

Re: How to load 4 blue belts per wagon?

Post by disentius »

I suspect problems with your counter :D
Mine confirms the numbers VenditatioDelendaEst mentioned.

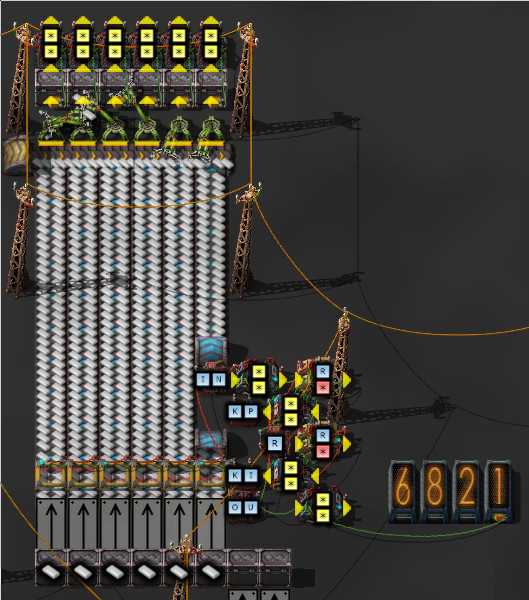

trainloader 116.75-s .gif
trainloader 116.75-s .gif (5.54 MiB) Viewed 8518 times
Top
User avatar
eradicator
Smart Inserter
Smart Inserter
Posts: 5207
Joined: Tue Jul 12, 2016 9:03 am
Contact:
Contact eradicator

Re: How to load 4 blue belts per wagon?

Post by eradicator »

disentius wrote: ↑Fri Sep 13, 2019 2:56 pm I suspect problems with your counter :D
Mine confirms the numbers VenditatioDelendaEst mentioned.
I just measured my counter on a double-loader full-throughput blue belt, and it shows precisely 45 as expected. I then went ahead and built 6 copies of the full blueprint. 2 Copies run at 116.7i/s, 3 at ~114i/s, 2 at ~112i/s. Some of the copies are rotated, but i don't see a pattern regarding speed. Somethings going on :p.
Author of: Belt Planner, Hand Crank Generator, Screenshot Maker, /sudo and more.
Mod support languages: 日本語, Deutsch, English
My code in the post above is dedicated to the public domain under CC0.
Top
