7 digits 7-Segment display (expandable)

This board is to show, discuss and archive useful combinator- and logic-creations.
Smart triggering, counters and sensors, useful circuitry, switching as an art :), computers.
Please provide if possible always a blueprint of your creation.
Post Reply
Copy link
Deelkar
Burner Inserter
Burner Inserter
Posts: 9
Joined: Mon May 22, 2017 5:12 am
Contact:
Contact Deelkar

7 digits 7-Segment display (expandable)

Post by Deelkar »




I made the above 7 digit 7-segment display, it can be expanded or shortened by the digit, it expects the input at the top right, the constant combinators are there to choose the colour (white works best in most cases) for each digit.
Connect to anything by wire and choose the apropriate thing you want the quantity displayed of. Connect to Roboport to read either bot counts or logistics storage amounts.
Updates very fast. Not good if you are low on UPS/FPS.
Top
Thomas.wur
Burner Inserter
Burner Inserter
Posts: 7
Joined: Thu Mar 07, 2019 10:22 pm
Contact:
Contact Thomas.wur

Re: number display

Post by Thomas.wur »

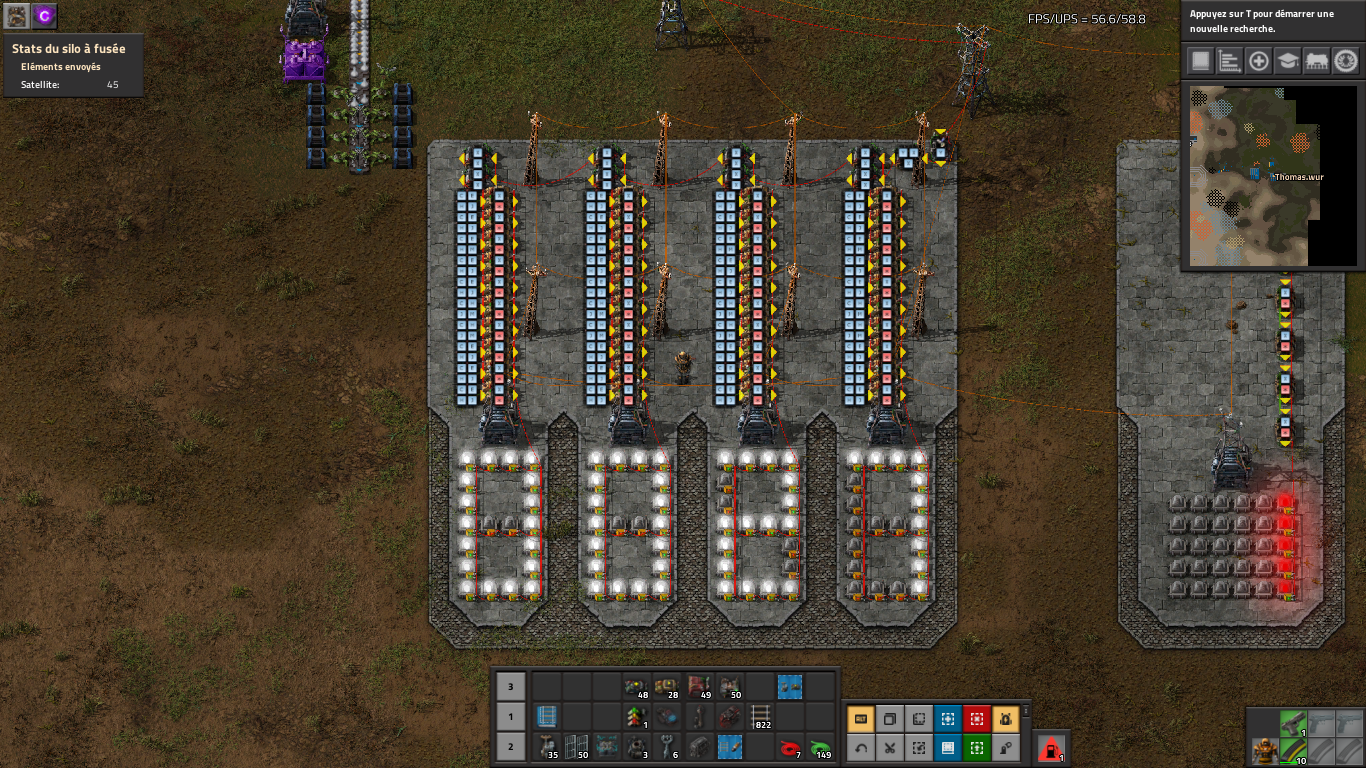

Hey! I really love your system its working well, its compact and its well done. I looked at the system to see how it works to learn more about circuit network and now i know how its working. I made modifications for my personal preference. Here is a picture of the modifications i made:
Number display (modified from Deelkar)
Number display (modified from Deelkar)
Factorio 0.17.17 2019-03-24 12_24_59.png (2.45 MiB) Viewed 2137 times
(the thing on the right is an other project, its not connected to the digits thing)
Top
