Why is my circle uneven?

[WIZ4]

I am trying to create a circle of entities. I wrote a function for this:

Code: Select all

function circle(x,y,r)
	local angle = 0

	x = x + 0.5 - (x + 0.5) % 1
	y = y + 0.5 - (y + 0.5) % 1
	r =  r + 0.5
		while angle < 2*math.pi do
		angle = angle + r/r^2

		local xs = (x  +   r * math.cos (angle))
		local ys = (y  +   r * math.sin (angle))
	game.surfaces[1].create_entity{name = "wooden-chest", position= {xs,ys},force='player'}
	end
end

But my circle is uneven. besides, chests are sometimes placed again in the same position(I identified this as a duplicate shadow).

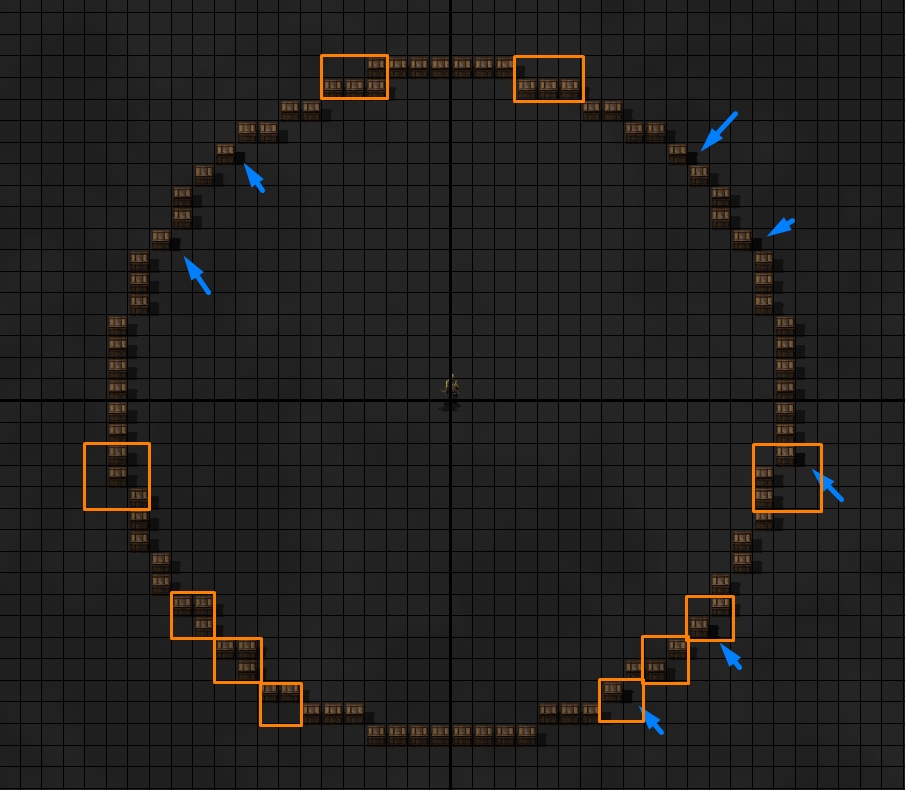

Code: Select all

/c circle(0,0,15)



Orange highlighting - discrepancy
Blue Arrow - Chests x2

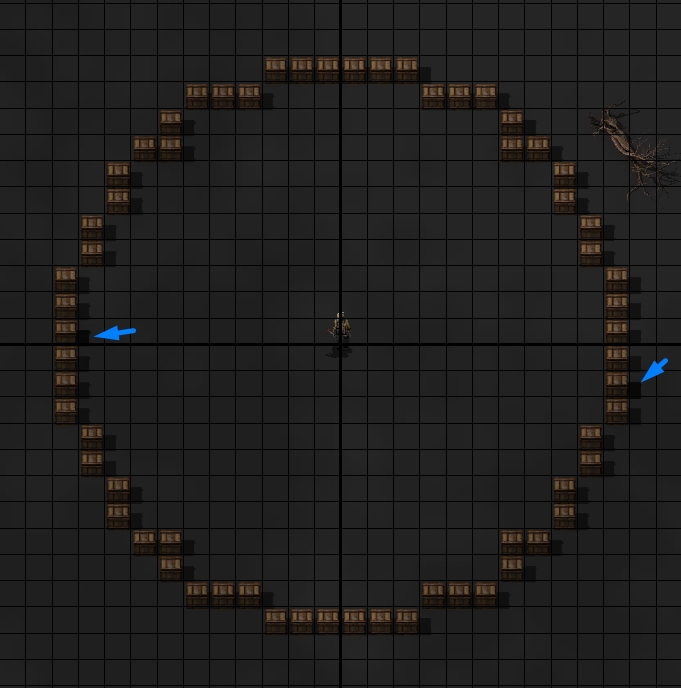

Code: Select all

/c circle(0,0,10)

Discrepancy none, But duplicate chests are present.


How do i fix this?

[pleegwat]

You're probably running into rounding errors in the angle calculation. It may be more reliable to iterate over x and y instead of over the angle.

EDIT: A quick google turns up https://en.wikipedia.org/wiki/Midpoint_circle_algorithm
