Let's see your clever builds

[ssilk]

Radar will be attacked, if in reach. Like lasers, cause it is a military building.

[vanatteveldt]

Inspired by some of the other threads, I wanted to venture into self-contained production units. An ideal production unit, in my eyes:

- Uses only raw materials (iron/copper/coal and fluids/gas)
- Uses belts only for the input and output, ie where feasible intermediate products are directly fed into the next machine
- Has approximately right proportions
- Is repeatable, ideally by copy/pasting them in a line.

I use the the Science Cost Tweaker mod, which has its own production lines for science. Since I haven't seen those posted, I'll include my designs here:

Red / Green: (repeatable, 2 units of green and 3 of red)


Blue: Shown are two units of each, mirrored to share coil / plastic to improve proportions. Produces enough circuits for a third unit



Also, I made a nice little laser turret unit. It operates at 50% capacity due to both steel and batteries:

[DOSorDIE]

I've worked a Little bit with jackilope's design and with time I improved some Things.:
-I made it a Little bit smaller in lengh and width
-I made it easyier to expand
-I mad three different Versions (Normal, "faster", kompatibl with more modules)
-I tried realy hard to reduce the amounts of belts with making the undergound Belts longer
-I made it Cheaper with using less Fast inserters
-Now the Design has some buffer Chests
-Now it is fully modular
-I added pumps so you can build more modules in one row
-I tried to make it cheaper
-I tried to Balance the stuff on the Belts even

What a mess

»Perfection is finally attained not when there is no longer anything to add,
but when there is no longer anything to take away.«

Keep it simple!
So i would make it like this:
1 Side

Red 1 Side.png (27.28 KiB) Viewed 17821 times

2 Side

Red 2 Side.png (46.13 KiB) Viewed 17821 times

[tolomea]

Probably not original but this is my standard barrel filling and emptying setup.


The train carriages are locked to half empty barrels and half full.

The filling is on the right and is fairly straight forward. This particular one is loading outbound petroleum gas barrels at my refinery.

On the left emptying inbound crude barrels is a little more interesting.
The central requester chest is set to request up to 200 empty barrels from the logistics net which includes barrel production. It's also connected via red wire to the smart inserter next to the active provider. That smart inserter is set to move empty barrels from the requestor to the provider when there are more than 400 in the requestor. This ensures there are always between 200 and 400 empty barrels in the requestor keeping the system full but never jammed.

Additionally the requestor in the top left is pulling in any crude barrels that make their way into the logistics net. And finally to ensure that gets priority the bottom left inserter is set to only run when there are no crude barrels in the logistics net.

[tomo1109]

My friend has created Christmas Light Show using the circuit.
I had never seen anything like this, do you guys have seen?

https://www.youtube.com/watch?v=indN4kcshB0

[Supercheese]

My friend has created Christmas Light Show using the circuit.
I had never seen anything like this, do you guys have seen?

https://www.youtube.com/watch?v=indN4kcshB0

Very impressive! I can't imagine how many hours that must have taken...!

[SpeedDaemon]

My friend has created Christmas Light Show using the circuit.
I had never seen anything like this, do you guys have seen?

https://www.youtube.com/watch?v=indN4kcshB0

I think your friend has just won Factorio

Love the clever use of the storage tank Alt-information display.

[Neotix]

This is AWESOME.
I don't want to even think about complexity of logic network. It's too much for my brain :p

[tjmonk15]

My friend has created Christmas Light Show using the circuit.
I had never seen anything like this, do you guys have seen?

https://www.youtube.com/watch?v=indN4kcshB0

Love it! Should totally fix the light colors tho http://www.webmail.factorioforums.com/f ... 44&t=13907

- Monk

[RuFrozen]

I have made big factory to make rockets. It is very fast way to make it
Also I have set big amount ressources on start up (just don't need make big railway system)

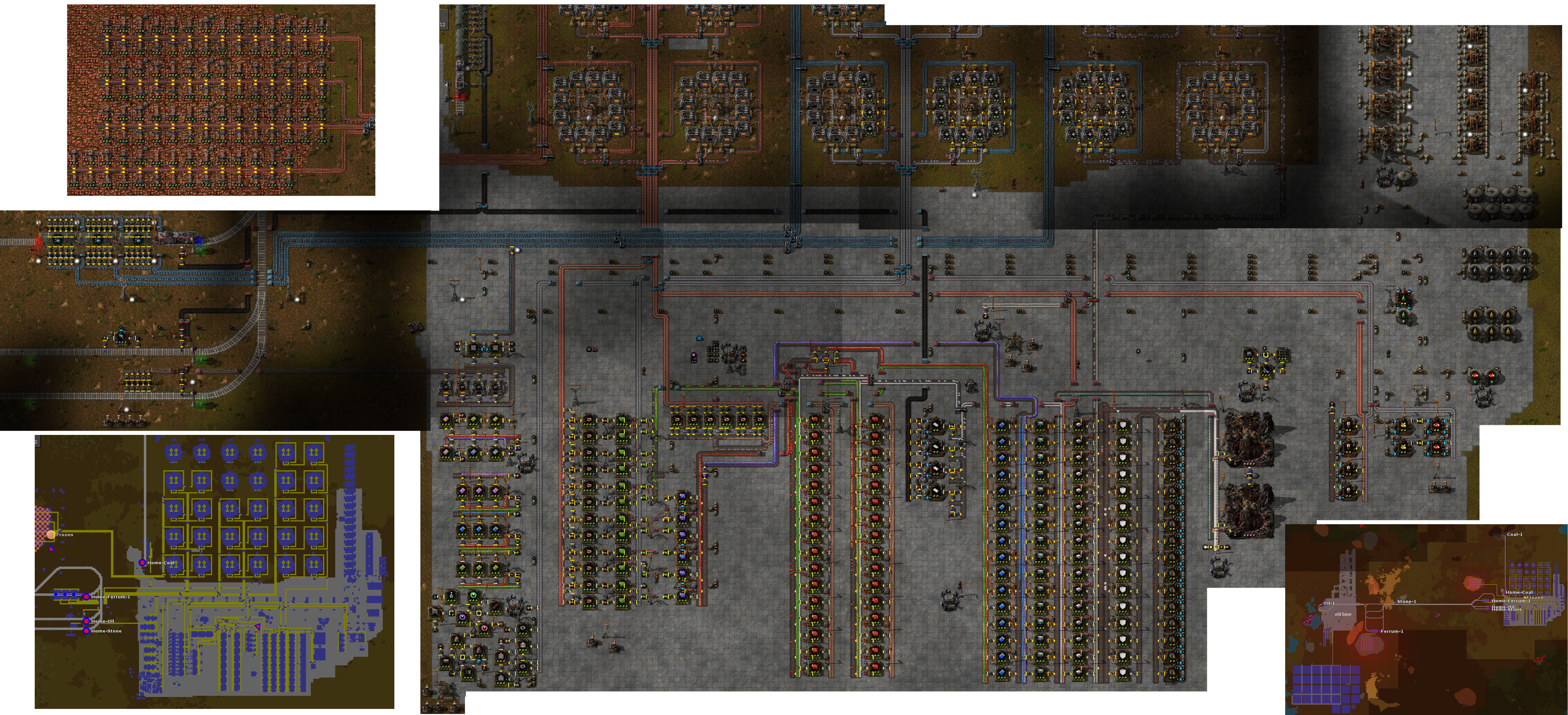

Here big image of full factory:
https://forums.factorio.com/forum/downloa ... ew&id=7316

here


[DOSorDIE]

I have design a Multismelter for Iron, Cooper, Stone Bricks and Steel ...
Its all in one. You need a signal to limit the steel production.
Works great!
No problem when Output get sucked.


[MeduSalem]

I have design a Multismelter for Iron, Cooper, Stone Bricks and Steel ...
Its all in one. You need a signal to limit the steel production.
Works great!
No problem when Output get sucked.

Well, looks neat.

A little bit too much space used for my taste because it uses 54 squares for 2 furnaces and it doesn't support beacons efficiently.

It seems to work though as long as the inserters grabing stone from the belt stop after putting 2 or 4 stone into the chest and the inserter inputting from the chest to the furnace only working when there are 2 or 4 stone. The same mechanic basically works for steel as well just that is 5 iron places.

I came up with a similar thing a year ago... I don't remember anymore if I already showed it on the forum or not and I am... too lazy to check:

Smart Furnace with Belts.jpg (206.95 KiB) Viewed 17351 times

It uses only 45 squares for 2 furnaces and allows for a row of beacons between the furnace rows. That's why I wrote "uses too much space" xD

The loops necessary to bring back the resources that weren't used the first time around aren't implemented on my picture. It was more of a design study back then. But if I would have adapted it then I would have controlled the entire thing with 2 storage systems:

• One would have been after the smelting, which would have controlled what items are to be smelted and the amount.
• The other would have been before the smelting to control the saturation of the belts leading to the furnaces. The excess resources that didn't make it into a furnace the first time would have been recollected there too so they don't block the belts.

Both the storage systems would have worked in tandem with the smelter banks without hard wiring between them but rather using the wireless logistics system for easier expansion because I wouldn't have bothered connecting 1000 storage chests.

I am speaking of Beacons because I actually calculated in an excel sheet that using Beacons with Speed Module 3's and putting Productiviy Module 3's into the furnaces would be more efficient than using no beacons or modules. Using Efficiency modules can't be beaten anyways but for me they are also a wasting raw resources and cause huge fields of furnaces rather than the compact solution of a furnace pushed by 6-8 beacons each which are also creating additional items out of thin air thanks to productivity modules. I know that they cause a lot of idle energy but with the upcoming power switch that wouldn't be an issue anymore as I would have easily shut down the entire smelter bank depending on demand. Can't beat that efficiency, not even Efficiency modules. Also there is nothing more satisfying than watching a furnace on drugs. The speed at which a furnace smelts ore when pushed by 8 beacons with SM3s is just ridiculous, even with the countereffect of PM3s. It's like 9-10 times the speed of a regular furnace. One needs actually 2-3 fast inserters for Iron/Coppoer ore to keep up with that when grabbing from belts.

And yeah, the wiring is still back from the days when it wasn't possible to connect chests with inserters directly but rather when it had to be done over an electric pole. Nostalgia.

[DanGio]

Hello ! First time posting something in this subforum, big day for me ! What I propose here is not really "clever", as I didn't find anything unknown by the community, but I put love into it, so why wouldn't I share it ? That's a power plant running on solid fuel. And you know what ? It requires ALL YOUR OIL.

Before I go into explanations, please note, if you don't know it already, that powering your factory via solid fuel is LESS efficient than powering it with coal, because oil processing demands a lot of energy. I made that build because I always play long games which require energy for hours, and I wanted to avoid solar arrows, a "no brainer" solution, as seen on the forum.

So, cons :
- less efficient than coal powering (we'll see later that there's a 5.528 points gap between efficiencies of coal and solid fuel setups, that's quite big)
- much more expensive to build. (we'll also see later that it requires something like 0.8 pumpjack for every MW you want to generate)

Pros :
- much simplier transport belt setup, no need for fast or express ones, not even a single splitter.
- therefore, this build can be expended easily to a create really big power plant.
- once built, this provides energy FOREVER, without needing to regularly find new sources of fuel. You'll need new outposts only if you want to expand the power plant or if you want more Crude Oil for production.
- and as it provides energy forever, you won't get a total blackout because you didn't notice that your coal outpost was dried out...
- did I mention that it provides energy forever ?

So, are you ready to give ALL YOUR OIL ? Here it is, there's 2 blueprints :

one for the train station,

and one for the steam engines.

The blueprint strings are at the end of this post.

How does it work : I place the Station blueprint only once, and the Steam Engines blueprint several times. See the last picture of this post to see how they're placed. Then I send all my Crude Oil to the station (middle track) in cargo wagon filled with barrels. Small pumps with no red wire do the usual job : Crude Oil gets refined, Heavy Oil gets cracked, Light Oil becomes "LO Solid Fuel" for boilers, Petroleum Gas becomes "PG Solid Fuel" for the train station (left track). I'll use that PG Solid Fuel to fill all the locomotives of the train network. Now, small pumps connected with red wire :
- the top one sends Petroleum Gas to become PG Solid Fuel for boilers if PG > LO. Because trains do not consume a lot of fuel, Petroleum Gas tends to stock up, and could block the entire thing. So, if PG > LO, the excess PG becomes Solid Fuel for boilers, and of course, you can see in the "Steam Engines" part of the build that PG Solid Fuel has priority on the belts. As a result, we'll end up with PG tank and LO tank filled up to 2.5k, and a small part (between 0 and one third) of the boilers running on PG Solid Fuel.
- the bottom one sends Crude Oil into the train station (right track) to be filled into barrels if CO > 2k. This excess Crude Oil will feed the factory (plastic, acid, etc...)

To sum up : all the Crude Oil transit in the power plant, fuel it, and the excess crude oil can be picked for another use.

Now, a bit of calculation, because it needs it to work properly :

how many pumpjacks do we need

I'll assume that :
- we don't put any speed or productivity module into this build, because we want to get maximum power efficiency.
- all the boilers runs on LO Solid Fuel, because PG Solid Fuel is mainly intended to feed Diesel Locomotives. So let's assume, to be entirely safe, that Diesel Locomotives consume all the PG Solid Fuel.
- all the pumpjacks run at 0.1 CO/sec, because we want it to run for an infinite time. Higher CO/sec will get into the excess Crude Oil track.
- all the Steam Engines run at 100%. If they run at less than 100%, that's again excess Crude Oil, great.

Let's go with 100 Steam Engines, that's 5 copies of the steam engines blueprint.
100 Steam Engines produce 51MW, so they need 51MJ/s of Solid Fuel into their boilers. 1 Solid Fuel is 25MJ, so 100 Steam Engines require 51/25 = 2.04 Solid Fuel per second.
10 Crude Oil becomes 1 Heavy Oil and 4.5 Light Oil, then 5.25 Light Oil (HO Cracking), then 5.25 Solid Fuel. As said before, no Petroleum Gas here.
So, if 10 Crude Oil gives 5.25 Solid Fuel, we need (10*2.04)/5.25 = 3.8857 Crude Oil per second. That's about...

40 pumpjacks for 100 Steam Engines. Hey, I said ALL YOUR OIL, you knew it would be painful . Well, consider that these 40 pumpjacks will also probably fill all your needs for Crude Oil into your production line, because there's a lot of factors that generates excess oil : Diesel Locomotives not consuming every Solid Fuel, pumpjacks running at more than 0.1 CO/s, Steam Engines working at less than 100%.

Let's check the build :
10 Steam Engines requires 0.204 Solid Fuel per second. 1 Chemical Plant produce (1/3)*1.25 = 0.416667 Solid Fuel per second.
20 Steam Engines requires 0.777 Crude Oil per second. 1 Refinery gets 2 Crude Oil processed per second.
So, in my build, 1 Chemical Plant for 10 Steam Engines and 1 Refinery for 20 Steam Engines get the job done quite easily. In fact... I could almost redo it with fewer machines. Well, maybe I will someday.

Now, just for fun, I'll try to calculate power efficiency of the setup, compared to coal powered boilers. Let's assume that Diesel Locomotives don't consume fuel at all (so all Petroleum Gas gets into PG Solid Fuel for boilers), because we're only looking at power production. Also, I won't include energy drain...

Solid Fuel setup

100 Steam Engines requires 2.04 Solid Fuel per second. With this setup, 10 Crude Oil gives us 5.25 Light Oil and 5.5 Petroleum Gas. That gets into 5.25 LO Fuel and 2.75 PG Fuel, as PG fuel requires 2 PG. So, the 2.04 Solid Fuel per second will be made of :
- 2.04*(5.25/(5.25+2.75)) = 1.33875 LO Fuel per second.
- 2.04*(2.75/(5.25+2.75)) = 0.70125 PG Fuel per second.
As a chemical plant produces 1 Solid Fuel every (3/1.25) second and needs 0.21MW to run, we can already say that we need :
- 1.33875*3/1.25 = 3.213 Chemical Plant producing LO Fuel, which requires 0.21*3.213 = 0.67473 MW
- 0.70125*3/1.25 = 1.683 Chemical Plant producing PG Fuel, which requires 0.21*1.683 = 0.35343 MW
Now, 0.75/5.25 of the 1.33875 Light Oil/second comes from Heavy Oil cracking. One chemical plant produces 3 Light Oil every 5/1.25 seconds and needs 0.21MW and 4 Heavy Oil every 5/1.25 second (= 1 Heavy Oil/sec) to run, so we need :
- 1.33875*(0.75/5.25)/(3/(5/1.25)) = 0.255 Chemical Plant cracking Heavy Oil, which requires 0.21*0.255 = 0,05355 MW (and also 0.255 Heavy Oil per second)
Let's check : 0.255 Heavy Oil, 1.33875*(4.5/5.25) = 1.1475 Light Oil, and 0.70125*2 = 1.4025 Petroleum Gas. The ratio of 1/4.5/5.5 of advanced oil cracking is still intact : 0.255/1 = 0.255, 1.1475/4.5 = 0.255, and 1.4025/5.5 = 0.255, so the previous operations should be correct.
Now, with the previous check, I see that we need 10*0.255 Crude Oil per second. That's only 25.5 pumpjacks (remember that you don't get extra Solid Fuel for Diesel Locomotives here, nor extra Crude Oil for production). As a refinery process 10 Crude Oil every 5 second, that 10*0.255 Crude Oil needs to be processed by (10*0.255)/(10/5) = 1.275 Refineries, which requires 1.275*0.42 = 0.5355 MW
Finally, the 25.5 pumpjacks requires 25.5*0.09 = 2.295 MW

Let's sum up : to generate 51MW, I consume 0.67473+0.35343+0,05355+0.5355+2.295 = 3.91221 MW, or 7,671% of the generated energy.

Coal setup :
100 Steam Engines require 51 MJ/sec. 1 coal is 8 MJ. So the setup requires 6.375 Coal per second. 1 Electric Mining Drill produces (3-0.9)*0.5/2 = 0.525 Coal/sec. So we need 6.375/0.525 = 12.143 Drills, which consumes (6.75/0.525)*0.09 = 1.093 MW, or 2.143% of the generated energy.

You can see the difference, coal power is much more efficient. On the other hand, note that filling all the machines of the Solid Fuel setup with Efficiency Modules II would reduce its power consumption to ((3.91221*0.2)/51)*100 = 1.5342% of the generated energy.

Here's the Blueprint strings :

Station

H4sIAAAAAAAA/61Z626rOBB+lSq/4xUQLomO2BdZrSIXnNQ6YFhjqq2ivPuaBNpAfBkm+ytVM5/n6vlmnLJ5q5qCVm/H/MKE4oqzLr9cBK1Zvml5y4hqyFk2
vSg327bptEAj8su/OQn+SLZfOYn053VbcsmK21fRdQtAh2ZwOgPPIY/6HGLJKBbCxDynjUrDA0xsD1LqOy2BnTYpzWBi6VLMlpvEdq4NkD5oeEhmDDAqhuoY
CyZM1utIHnV0Na0q0vZ1az4/hp+fms6HxAnsNIlGxM51xxaY8AED0xKYtaQw9KQvetRXs5L3NWGVPkvygrRNZclOtLYCwH4FNsBcbLf2XFBSbOD4pViPtqYY
zVMxpRjNY/Az+O0If7St6TpODZ6gOsNi1Aa2Ln0hdlPgk1dSHr+S8vgVzQlKc2gEx94+PAFvJheNEHeknkn+2oSbv/OLZKWeT26jyteRl3miM3i9iZZ8lCy4
LHqu8suJy04dO34WtMov6qvVik9Vz7WxowtMSd2ZdKc6025z3XZsOMeFqPj5Q5GGV5tBZ91SSVUj882fmyui+z1Rh/EOgQkmANSKUQOYkXwFZUuruYpd/WO3
0nfzJYNVa7JSV/zChU49keh0OdGzhlPx23ybI3fwK/p0p4If4KqJAEVSZiyAKmYEbCskmyvm9QLE/DO9xQerud6HSFtRocyTwqLEtvovPjSKD0Y/v4beQApJ
i99cnDdrStc6T9jyGhvst286bqkUdFYKOmsqVM9uNRHMTMxR/vfUO9dN8wAIqpUAUn2hsQJgQ0oCwBoRT2H07Rfga34voGU9+zk6MmUCFoURC7dxZ7Lxoef1
752iwz8Xd2oArZk8rVHwRxwViMztl+3uzQInm/embeSiTZG9lotXdfpo7aVaubV5KOu5xO7R8XSjbJ0pqd9VG3Tv9gJQ8NZBuGrOvFN6SNTM0ynS0q7jn4y0
svnkJZPG6Xg2qFSNOJMPKkpWEi46JtUSFZgs+HFca2T1e6XpitS0+OCCkZ2JoJbr1TfvnXg1UF5fshv5vVMpWbUBtPTUbZh/jCbZt2V+PgIve6N8tmAEqSzx
HS/RcnXd6rho2eE5levs6Lsw7hCsbtXXd5jWZHLMfzbP/5oCCp5DcaKdzbPAlHj/wBkY4+eYYQyizz0hNhoDWhIPhxeWxO/Kvq18QtONUHkUBIF9AfTTzdxj
Jeltr9Qf1TLjoZY+WAjagTvgYBkOluBgOxwMFxIcCmciLh644OMy7aorDCeFIYaUQuvYBWWlcMnK37R0b7N2XrIN3CF4OB3lrfPfIo6S/dPrz6cA7h8cGWWO
Nu7omoqX5NRrR3T76XUnSoIrqJdPauZrtmV8vvWBcPcay8zf9gEMunwVt1Poc1YRNBoaXhxsZDaX9VLmU1X6q24ZLAddmgy38eXSksib+2XqHc6aSgpW9P9j
zXvZM7QFwEOfGFyGxCVI3A6JQ8YFCUNaiQwKMgfIlDtLDPIUsuJn8wkC/ml+6nSZqx25X3KX2B/nXG+lo6F7Gzn/3Glykk1Nlr/EvEI7e2CrnuQPK2jgsI4G
9tbm627wh1XrQRTiGhwGlyFxCRK3Q+KQcUHCkFYig4LMATLlxhK7bnlx26OXXK0YrQkTZz2wD9f4/m00fjsoEaRTTTsMbL8kU70Ub8dfTJT/AV3nHFSJJgAA

Steam Engines

H4sIAAAAAAAA/6Xd7W4bObaF4Vtp5Hc04P6wk2CQaxl4bHVagCMbtnJwGkHu/bhzkpnIXbKeov810KTIqk2yuF6v7H1z99vt3fXV7W//+vh1uz/sDrvt48ev
X/dXn7cf39zv7rebw93m08Pdl/3Nm7f3d49PDe72H7/+78dN/OPi7Z8fNxfjHxff3t7sHrbX3/9Xf3sLvfNc53/f7W63D8tD9vunXtbyw1HLq8fd9ebwcLV/
vL97OGz+vb09HPcbiwN877bbP24fDn8b6NcevzxIruv94eXeMuWFJ10eNJZnfLmq84eTnReikYtTfKHh0ev/vL3Zffm82d4+jfXwNLH7u9vts9dYP/pd8rrw
lu/mVtDl6hV0+aoV9O71K+idhocb8kuI5adYtyYvT3U+v4J6acKPn69ubze3V5/vTyy3C15EzS0vVq+bi9dHfmFQ6dar59on5/rCKuJXEstvZN0q6pmTrWXd
9Oplk9yy5iK40O1MBPNVp1S9fq2efSe59tli+dHWLZuaWTYe3+CWY3VI4/VBidWDjtcPyk8ay2NajIauN34Hsfze13yvfn6C6oMcPP9pzffmFS3nbtiz3VZf
zOvM1fpM76lrfSwPvepAeT4yLdbzYcul18/3I1tuvXoN8W28Fm7jZyJ45loti271Xb5efxv3J43lMW3BnH3zOTudk7dxgQp19kZ66hfGLz/w9vDn/VP3uy+H
+y+HN2u4xPH4K87jo68FPelpAjLx1OO/T73br37ok1PxA2Ks+R7l8XFy2F49jbH/tNs/f7s/3lXOafFc+GhIN5xdLk3uzNmYc5+/XDiJpNu7le8554aZk5HZ
697z5OTmFNLxaH4QZKzaCAtXWZncZLdY90y95pF6aWrnl1zMbe2Y20fxftWSm53cZLfLla9ubkPEAr2RbhfrXt3k/pl9qMluNbUjjkc7t8ljQSDK3OY2eazZ
rc8an11ycwt77jO87is8N7O5z+rar+ocopvqtW6TTu7RWrP6555+8qM9J27XfN6m5jW5k1cts6mZTZ1M+IXP+WlNdVp5lP9Yn7hhfrzkqVNm6na86m78bmbd
X6zYxVPn5FSnFWJq6venvkXr5OrcXWTuc68f8HzNzOZ6ze3HoL+o/Wy8bvfO3cvn7svrrsuxYtnHSkTVr3mKuTc2tTNjamseC8HrP7afd9dXt5v726v9YXER
5LO/vvTbp//a/QXOHu9udzeb379sbze/P9x93tzuPv1x2Nztbt+snlVOfViPtfNLz5KvfxTekbnmurcEaU4g81j4dX5TR8O8iFvHa4bhPyXnQvuXprX08LqV
LSB9Mh4vPffPqJz0a8i7fmbDeJlsL//Eab+Ihu7sefcyUs/JvyPEq19BLr6B539DfOkXlmO46g8xefKvZ3LEvtdz6X57eHha5U+r/tPV48vH7JlwvXvxDyDL
i+zy+W5d/OUzrWKhFRzdr31F5/+s8zyEl3yGT7HVyV7vV5xl7HT9sQ5r5ZX6Z7eTvhg4/FaPOc6MyfJ3Sj/UyotKLs7WDA45Nc/lmNhhtrQM+N5Tfsf4Mc5J
k9vJI6j4wvCzQ576sJw6v3yIXHyKy7Nnn48QZ55Bb0A1By6PnVoLQfn/+R07v043+9uvnYxd/vd3Z8+V0x62v08wV87vl+dZnJ6GxUesxRH5C9V/W3HLETpa
Jk/qZ/Ow/f1JgT/8uUjcvt/Zfn6Gr27+52p/vb35SzRt7h/urrePj7v9p5euFWNhUInsSWftycjyELE4wvn33Cde85kT8PQ/hnmp81js+9IC3/zSZc0QJy2B
p442HyEXRzh/eB7/2xjH1iu/af1Lr29vd9d3+7/+sdduf7N9msjbBUj11Oqwu/3+T8KOhu/vf2WKbz/6PP3Q9cP2sP1rXyy0G9auP2C799juHba7xHYX2K6x
XWG7xHYYj8Z4FMajMB6F8SiMR2E8CuNRGI/CeNR/4vF4uNtvN/dXhz9OtBzaMj9wy/fc8h23vOSWF9yyuWVxy+SWHKPkGAXHKDhGwTEKjlFwjIJjFByj4BgF
xyg4RhwijhAHiOPD4eHo+AbiN44NNTD6ezpBfWJ9hRoTDbKuGl2Guq55p/Dm4/3MRwSfOnyQ8dnIxy2f4PxR4O8Mf7r4a8gfWP5m8zWAbxZ8WeH7D1+p+JbG
F7/SyJRGpjQyeHnGuzhe7VEplEakNSKtEWmNSPOXRSPSulda90rrXmndK62RuZDIFFKEQopQSBEKKUIhRSikCIUUoZAiFFKEQopQSBEKKUIhRSikCIUUoZAi
FFKEQopQSBEKKUIxRSimCMUUoZgiFFOEYopQTBGKKUIxRSimCMUUoZgiFFOEYopQTBGKKUIxRSimCMUUoZgiFFOEYopQShFKKUIpRSilCKUUoZQilFKEUopQ
ShEKKUIhRSikCIUUoZAiFFKEQopQSBEKKUIhRSilCKUUoZQilFKEUopQShFKKUIpRSilCKUUoZQilFKEUopQShFKKUIpRSilCKUUoZQilFKEUopQShFKKUIp
RSilCGUUoYwilFGEMopQShFKKUIpRSilCKUUoZQilFKEUopQShFKKUIpRSilCHlMEc625N+kaeYxSzjbUl5mHvOEsy0l5HnMFM62lIWZx1zhbEuOEe3IPKYL
Z1tyjIpjVBwjOCgTKUMiZUikDMmUIZkyJFOGZMqQTBmSKUMyZUimDMmUIZkyJFOGZMqQTBmSKUMyZUimDMmUIZkyJFOGZMqQTBmSKUMqZUilDKmUIZUypFKG
VMqQShlSKUMqZUikDImUIZEyJFKGRMqQSBkSKUMiZUikDImUIZUypFKGVMqQShlSKUMqZUilDKmUIZUypFKGVMqQShlSKUMqZUilDKmUIZUypFKGVMqQShlS
KUMqZUilDKmUIZUypFGGNMqQRhnSKEMqZUilDKmUIZUypFKGVMqQShlSKUMqZUilDKmUIZUyBFOGYMoQTBmCKUMwZQimDMGUIZgyBFOGYMoQTBmCKUMwZQim
DMGUIZgyBFKGQMoQSBkCKUMwZQimDMGUIZgyBFOGYMoQTBmCKUMwZQimDMGUIZgyBFOGYMoQTBmCKUMwZQimDMGUIZgyBFOGYMoQShlCKUMoZQilDKGUIZQy
hFKGUMoQShkCKUMgZQikDIGUIZAyBFKGQMoQSBkCKUMgZQilDKGUIZQyhFKGUMoQShlCKUMoZQilDKGUIZQyhFKGUMoQShlCKUMoZQilDKGUIZQyhFKGUMoQ
ShlCKUMoZQilDGGUIYwyhFGGMMoQShlCKUMoZQilDKGUIZQyhFKGUMoQShlCKUMoZQikDEMhw1DGMBQxDCUMQwHDUL4wFC8MpQtD4cJQtjAULQwlC0PBwlCu
MBQrDKUKw6DCMKYwDCkMIwpDgcJQnjAUJwylCUNhwlCWMBQlDCUJQ0HCUI4wFCMMpQhDIcJQhjAUIQwlCEMBwlB+MBQfDKUHQ+HBUHYwEB0MJAcDwcFAbjAQ
GwykBgOhwUBmMBAZDCMGw4DBMF4wDBcMowXDYMEwVjAMFQwjBcNAwUBOMBATDKQEAyHBQEYwEBEMJAQDAcFAPjAQDwykAwPhwEA2MBANDCQDA8HAQC4wEAsM
pAIDocBAJjAQCQwkAgOBwEAeMAgHDKIBg2DAIBYwEAUMJAEDQcBADjAQAwykAAMhwEAGMBABDCQAAwHAQP3PJgP2GLDFgB0GbDBgfwHbC9hdwOYC9hawtYCd
BWwsYF8B2wrYVYCmAvQUoKUAHQVsKGA/AdsJ2E3AZgL2ErCVgJ0EbCRgHwHbCNhFwCYC9hCwhYAdBGwgYP8A2wfYPcDmAfYOqHVAnQNqHFDfgNoG1DWgpgH1
DKhlAB0DaBhAvwDaBdAtgGYB9AqgVQCdAmgUUJ+A2gTUJaAmAfUIqEVAHQJqEFB/gNoD1B2g5gD1Bqg1QJ0BagxQX4DaAtQVoKYA9QSoJUAdAWoIUD+A2QHM
DWBmAPMCqBVAnQBqBFAfgNoA1AWgJgD1AKgFQB0AagDQv/9zKgPOZMCJDDiPAacx4CwGnMSAcxhwCgPOYMAJDDh/Aacv4OwFnLyAcxdg6gLMXICJCzBvAact
4KwFnLSAcxZwygLOWMAJCzhfAacr4GwFnKyAcxVwqgLOVMCJCjhPAacp4CwFnKSAcxRwigLOUKAJCjQ/gaYn0OwEmpxAcxNoagLNTKCJCTAvAaYlwKwEmJQA
cxJgSgLMSIAJCTAfAaYj0GwEmoxAcxFoKgLNRKCJCDQPgaYh0CwEmoRAcxBoCgLNQKAJCDT/gKYf0OwDmnxAcw9o6gHNPKCJBzTvgKYd0KwDlnTAcg5YygHL
OKAJBzTfgKYb0GwDmmxAcw1oqgHNNKCJBjTPgKYZ0CwDWBAB6yFgOQSshoDFELAWApZCwEoIWAgB6yBgGQSsgoBFELAGApZAwAoIWAAB6x9g+QOsfsDFD7j2
AZc+4MoHXPiA6x5w2QOuesBFD7jmAZc84IoHXPCA6x1wuQOudsDFDrjWAZc64EoHXOiA6xxomQOtcqBFDrTGgZY40AoHWuBA6xtoeQOsboDFDbC2AZY2wMoG
WNgA6xpgWQOsaoBFDbSmgZY00IoGWtBA6xloOQOtZqDFDLSWgZYy0EoGWshA6xhoGQOtYqBFDLSGgZYw0AoGWsBA6xdo+QKtXqDFC7R2gZUusMoFVrjA6hZo
2QKtWqBFC7RmgZYs0IoFWrBA6xVouQKtVqDFCrRWQZu+b9P3bfq+Td+36fs2fd+m79v0fZu+b9P3bfq+Td+36fs2fd+m79v0fZu+b9P3bfq+Td+36vtWfd+q
71v1fau+b9X3rfq+Vd+36vtWfd+q71v1fau+b9X3rfq+Vd+36vtWfd+q71v1fau+b9X3jfq+Ud836vtGfd+o7xv1faO+b9T3jfq+Td+36fs2fd+m79v0fZu+
b9P3bfq+Td+36ftGfd+o7xv1faO+b9T3jfq+Ud836vtGfd+o7xv1faO+b9T3jfq+Ud836vtGfd+o7xv1faO+b9T3jfq+Ud836vtGfd+k75v0fZO+b9L3jfq+
Ud836vtGfd+o7xv1faO+b9T3jfq+Ud836vs+qe+/ffvnU6C/POx/+9c/t/ub/wPj9dWyT8cAAA==

Oh... if you like it and want to use it, please consider naming the train stops "Asimov Power Plant". I like to give SF authors names to my Factorio train stations, and Asimov got the power station

Conclusion :

a setup with 400 steam engines.

Thank you for reading, see you soon !

[DOSorDIE]

I think i must explain how it works ...
There is how to build it ... (you need Inserter Item Bonus Stack 2)

Multismelter Explained.jpg (43.4 KiB) Viewed 17241 times

And it wont stuck or else ...
Its only a good idea to limit the steel production ...

[MeduSalem]

- we don't put any speed or productivity module into this build, because we want to get maximum power efficiency.

I strongly recommend you to put SM3's into the Pumpjacks and even boost them with Beacons where "reasonable". It may cause a little more overhead to get the Crude oil, but you get twice as much out of each Pumpjack, if not more, effectively reducing the amount of needed sources.

You can see the difference, coal power is much more efficient. On the other hand, note that filling all the machines of the Solid Fuel setup with Efficiency Modules II would reduce its power consumption to ((3.91221*0.2)/51)*100 = 1.5342% of the generated energy.

Don't know if you saw that thread from a while back, it's strongly related to the efficiency of using Solid Fuel:

https://forums.factorio.com/forum/viewtop ... f=8&t=7052

Not using EM2's in such a setup verges almost on madness. No offense intended. xD

I am using Steam Power with Solid Fuel all the time because I just hate how boring (plop down&forget) and cheating (because of no upkeep) the Solar Panels/Accumulators are.

But I would never think about using Solid Fuel without putting EM2's in all of the Refineries and Chemical Plants. It wouldn't be anywhere near to being realistically sustainable, especially not if you need additional oil products for manufacturing stuff.

Here is one of my approaches for a solid fuel power plant from about a year ago (with some "out of date" focus on calculating the oil demand):

https://forums.factorio.com/forum/viewtop ... 540#p79540


An other thing I would suggest is that you should put the Light Oil->Solid Fuel chem plants BEFORE the Petroleum->Solid Fuel Chem plants for the output to the belt. Because when the Light Oil Soild Fuel gets inserted first to the belt it automatically takes priority like it should. The Petroleum Solid Fuel would only get used when Light Oil Solid Fuel isn't sufficient to meet the demand and causes "gaps in the belt". Then, and only then, the gaps would be filled with the Petroleum Solid Fuel.

The way you have it now the Petroleum Solid Fuel enters the belt first, which means it will try using up all Petroleum Solid Fuel first and with it ALL of the Petroleum Gas until there's no Petroleum Gas in the buffer before it is even considering Light Oil Solid Fuel. This introduces an inefficiency factor because the plant is always trying to work on the worse conversion ratio. You might not notice it because you intend to burn all the crude oil anyways, but it's there.

If you would like to increase the amount of excess Petroleum gas for manufacturing stuff then giving priority to the Light Oil Solid Fuel via belt-priority is something you might want to consider. If one is able to avoid burning Petroleum Gas one should do it, at least that's one of my golden rules. That's also why I tend to calculate my Power Plants to be able to run from sole Light Oil nowadays. All of the Refinery Petroleum Gas is available for manufacturing items without causing a performance hit on the power plant. The only case where some Petroleum Solid Fuel is burned is when my entire factory is idle and that's only to gurantee that Refineries don't get stuck with Petroleum Gas. The belt-priority-trick is a real good trick to handle exactly that without the need for any circuit logic.

Sometimes I wish we were able to convert Petroleum Gas back to Light Oil and Light Oil back to Heavy Oil. For Steam Power plants using Solid Fuel that application might actually even be useful, even with the additional overhead. (And no I have no intention on using a mod if there is one)


That put aside I really like your layout DanGio, and I might adapt it with some minor modifications because it looks clean and neat. The common problem I suffer from is just that in all the maps I created I never found a lake with a shore geometry "good enough" to line up all of my steam engines in one location without causing an utter mess with the Water Pipes and Water Pumps. A reason why I really would like to be able to do some little terraforming without having to rely on mods. That's why I favored producing the Solid Fuel in one centralized spot instead to reduce the amount of logistics needed to get the crude oil processed and rather use belts to deliver the finished Solid Fuel to the various Steam Plants located at various lakes.

[Mion]

I've worked a Little bit with jackilope's design and with time I improved some Things.:
-I made it a Little bit smaller in lengh and width
-I made it easyier to expand
-I mad three different Versions (Normal, "faster", kompatibl with more modules)
-I tried realy hard to reduce the amounts of belts with making the undergound Belts longer
-I made it Cheaper with using less Fast inserters
-Now the Design has some buffer Chests
-Now it is fully modular
-I added pumps so you can build more modules in one row
-I tried to make it cheaper
-I tried to Balance the stuff on the Belts even

What a mess

»Perfection is finally attained not when there is no longer anything to add,
but when there is no longer anything to take away.«

Keep it simple!
So i would make it like this:
1 Side

Red 1 Side.png

2 Side

Red 2 Side.png

What program do you use to draw this?

https://forums.factorio.com/forum/downloa ... hp?id=7096
https://forums.factorio.com/forum/downloa ... hp?id=7097

[DOSorDIE]

What program do you use to draw this?

Microsoft Visio 2010

[DanGio]

Cool ! Thank You MeduSalem for replying.

Efficiency Modules : I wanted to propose a build that is "open", or "free". I mean that I didn't want to say "you have to fill all Refineries and Chemical Plants with 2 EM's II", to avoid people feeling that this setup is too expensive. Of course, when I'm using it, I often fill it with EM'sII if I can, but if I can't, it still works : 93% power efficiency is "ok", it just needs a bigger setup.

Speed Modules into PumpJacks : I thought 1st that EM II would be the best, but it is right that reducing by half the oil well that you need to find is a really good thing. I end up using SM3.

PG Fuel has priority over LO Fuel : In fact that's exactly what I intended to do. Remember that there's a pump with red wire which sends PG into Solid Fuel for boilers only if PG>LO. The thing is I consider this station to be isolated of the rest of the factory, to keep freedom of placement. So I have assumed that I can't "export" the Petroleum Gas, I need to get rid of it. So Locomotive Fuel at first. I forgot about Sulfur, which doesn't need any new ressources (we already got water and petroleum), so I could add some Sulfur processing chemical plant somewhere, and a new track to load it into trains. But anyway, if the factory consumes not enough Sulfur, I need to get rid of this extra Petroleum, so it has priority on the belts. If I invert LO Solid Fuel and PG Solid Fuel priorities, the result would be in fact exactly the same, except that LO Storage Tank would be always empty while PG Storage Tank would be always full, it's just a difference in buffers.

BTW, I found the 1st bottleneck : I put 900 Steam Engines, and saw that the one pump for Crude Oil isn't enough. I made it 2 pumps, and it works better.

I'll do the new efficiency calculation with SM3 in pumpjacks and EM3 in the rest later

[vanatteveldt]

There were some earlier "smelt it where you mine it" threads, with designs to interleave miners and smelters. These were aimed at post-green science, i.e. using medium poles.

I just started a new game and didn't want to make a traditional smelter line, so I used underground belts to allow small poles to be used.

Also, I wanted to smelt steel "in place" as well, so I built the steel smelting at the edge of the field with a fairly compact design:

smelt it where you mine it

On researching medium poles, the poles in the bottom can be replaced easily. Also, with stone furnaces the mines are working at 50% efficiency, but I don't really care as mines are pretty cheap, and it immediately sets you up to double the production once you get advanced material processing:

upgraded with steel tech

(note that I intentionally left a gap between the two steel 'units' in order to make it easier to get to the oil later...)

I tried to get a more compact design for the steel (ie without a gap between the two iron mines), but I couldn't really think of one without outputting steel to the bottom, so comments welcome!

[DaveMcW]

Fully tileable steel mining/smelting.
