[1.1.76] What is the blending mode for LuaRendering color?

[Honktown]

Expectation: Rendering's color to behave like tint, and the default blendmode to be: normal.
Here is code used to draw squares (more complicated than it needs to be, I know), and something must be selected:

Code: Select all

/c
local player = game.player
local surface = player.surface
local selected = player.selected
local position = selected.position
local X0 = position.x
local Y0 = position.y
local leftmost = -10
local rightmost = 10
local top = -10
local bottom = 10

--[[these aren't 100% accurate]]
local square_size = .5 --[[size of square relative to tile]]
local frequency = 1 --[[ at most 1]]
local occupancy = 1 --[[how much of the square is taken up]]
local period = square_size / frequency

local width_half = occupancy * square_size / 2
local height_half = occupancy * square_size / 2

local DX = (rightmost - leftmost)
local DY = (bottom - top)

for dy = top, bottom, period do
	for dx = leftmost, rightmost, period do
		local a = (dx - leftmost) / DX
		local w = (dy - top) / DY

		local force_a = true
		if force_a then
			a = 1
		end
		rendering.draw_rectangle{
			color = {w, w, w, a},
			filled = true,
			left_top = {X0 - width_half + dx, Y0 - height_half + dy},
			right_bottom = {X0 + width_half + dx, Y0 + height_half + dy},
			surface = surface,
			time_to_live = 180,
		}
	end
end

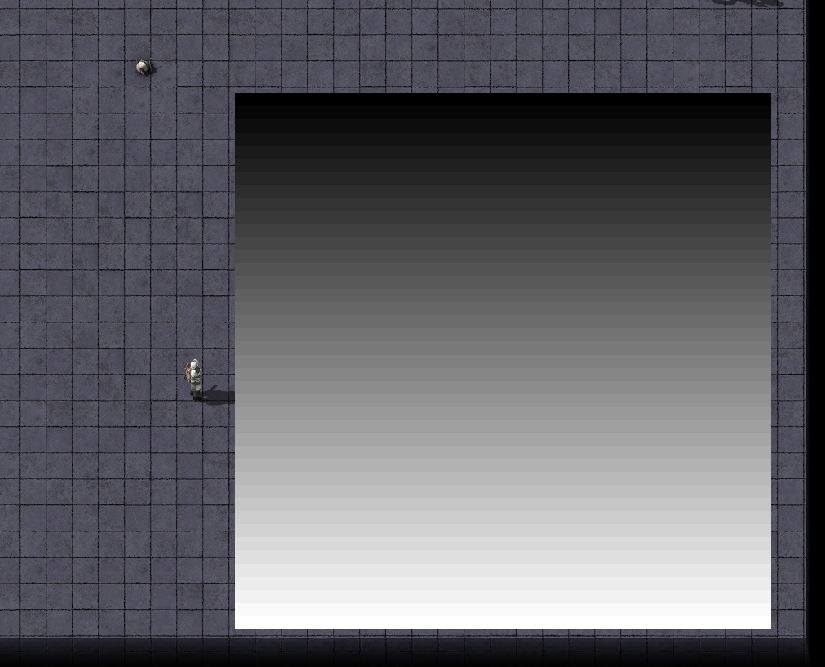

Results for alpha 1, which is full opacity (which the wiki still lists as transparency):


The result is sensible: alpha is fully opaque and draws 100% over the initial color.
Result = Active_RGB * Active_Alpha + Background_RGB * ( 1 - Active_Alpha )
Active Alpha 1:
Result = Active_RGB

Now, alpha force 0:


The result makes no sense. Alpha 0 is fully transparent for tinting, and
Result = Active_RGB * Active_Alpha + Background_RGB * ( 1 - Active_Alpha )
Clearly results in:
Result = Background_RGB

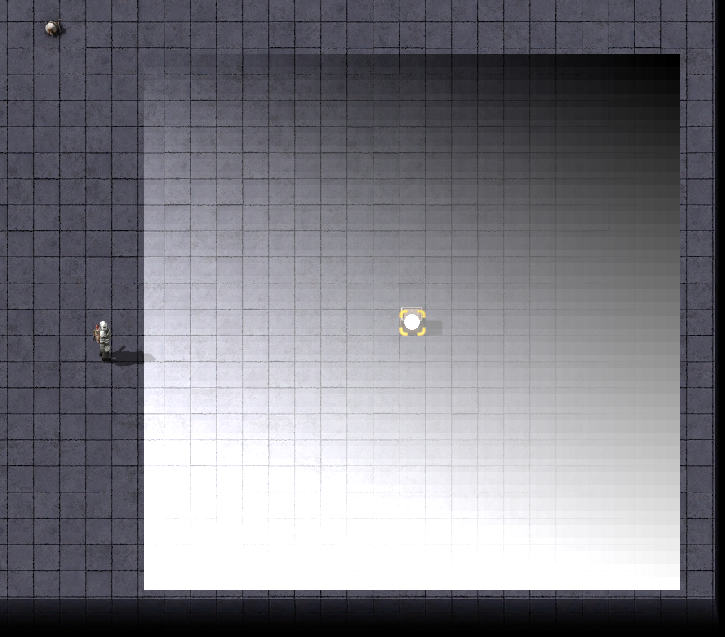

The non-forced code, where whiteness increases from left to right, and alpha increases from top to bottom:


This is clear that *just* changing the color results in an increase in opacity, the more white the color is. This is not the same blendmode as normal.

[posila]

Oh, it seems you spent lot of time on this, I am sorry

Expectation: Rendering's color to behave like tint, and the default blendmode to be: normal.

Rendering's color behaves the same as tint does.

This is clear that *just* changing the color results in an increase in opacity, the more white the color is. This is not the same blendmode as normal.

It is the Factorio's "normal" blend mode.

The wiki is incorrect in what normal blend mode is. It is:

Code: Select all

Result = Active_RGB + Background_RGB * ( 1 - Active_Alpha )

In most of Factorio, colors are assumed to be pre-multiplied with alpha. Sprites are being pre-multiplied on loading (unless premul_alpha is set to false). To satisfy this assumption, you need to set your color to { w*a, w*a, w*a, a }

See also: https://www.factorio.com/blog/post/fff-172
