[0.18.24] Every individual layer within an icon casts a shadow

[kirazy]

I'm making a mod that allows for user-customizable color definitions, and so of necessity I can't bake icons down to one color sprite.

I have the following issue, when I have sprites that have multiple layers, each layer is casting a shadow, and the shadow is cast on the layer below it, which looks weird for some entities and less so for others, but for example:


Calling attention to the way that the shell on the construction robot item on the belt seems to stand point more than it should, and the way the arrows on the miniloader also pop out.

I have the entities used to make the icon on the right for comparison.

I also made this example that shows just the base layer used for the sprites, compared to the icon with all the layers:


This may not be the best entity to convey the issue, since the shell is casting a shadow more or less where it should be, but in the animation above you should notice that the shadow becomes more dark, more intense when all the layers are turned on.

[posila]

I think we will have to bake layered icons on startup eventually, but for time being I am moving this to won't fix so people don't account with the fix coming in some distant future and try to avoid using layered icons when possible.

[kirazy]

Gotcha. I look forward to the eventual baking.

[ArchEzekiel]

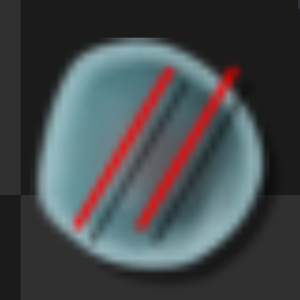

This still exists in [1.1.109], and I'm making this addition for documentations' sake. I ran into the same issue when using pictures for my items, and the issue goes away when disabling "item shadows" in the graphics settings. Good luck on Factorio: SA development devs!

When using pictures


When using icons


When the setting mentioned is off, and basically how I would expect it to look
