[posila][0.17.66][Modding] Different types of walls do not connect to each other

Post by lovely_santa »

Hi,

I am working on making my forcefield mod compatible with 0.17 when I noticed different types of wall do not connect to each other.
I am making a duplicate of the stone wall and adding a tint to them, other than changing graphics, they are identical.

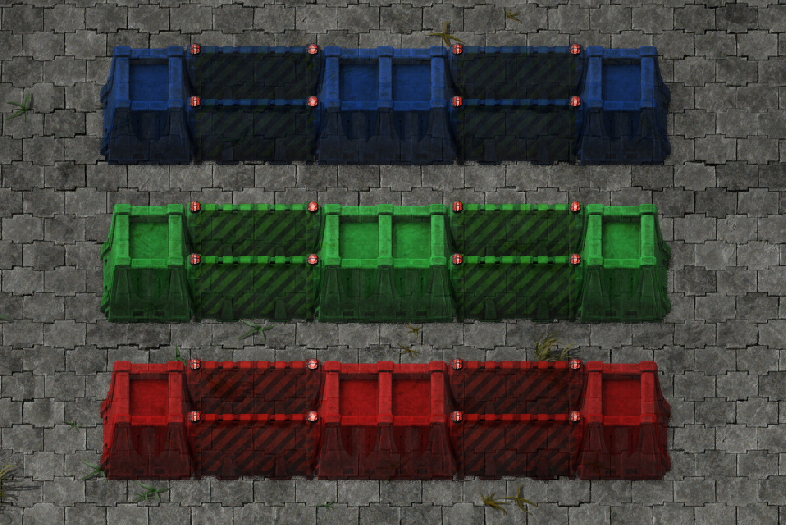

When I connect the walls up to themselves, they connect:

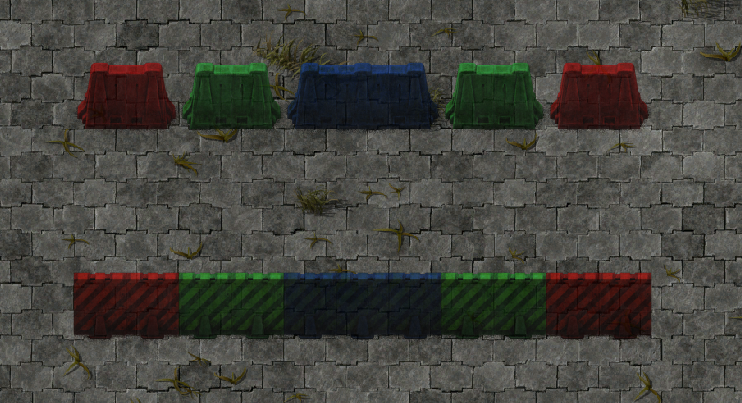

When trying to connect different types of walls to each other it doesn't work, however different types of gates will act as one:

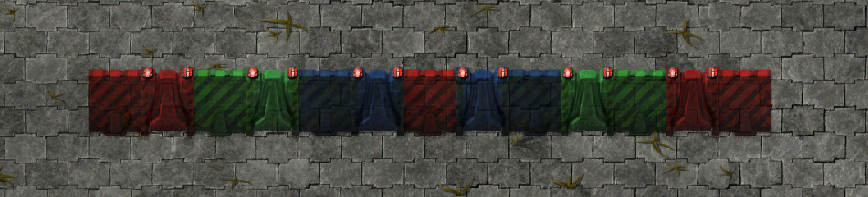

And as last, gates do connect to other types of walls:
:arrow: So it seems only a wall-wall connection between different types doesn't seem to work. However Klonan thought it had something to do with the collision box, but I'm not changing them from vanilla walls:

Code: Select all

-- __ForceFields2__/prototypes/entity/forcefield-builder.lua

function forceFieldWallEntity(color)

  local settings = require("prototypes/settings")[color]
  local forceFieldWall = util.table.deepcopy(data.raw["wall"]["stone-wall"])

  forceFieldWall.name                   = string.format(settings.name, "wall", color)

  forceFieldWall.icon_size              = nil
  forceFieldWall.icon                   = nil
  forceFieldWall.icons                  = LSlib.entity.getIcons("wall", "stone-wall", nil, nil, settings.colorTint)

  forceFieldWall.flags = forceFieldWall.flags or {}
  table.insert(forceFieldWall.flags, "not-repairable")

  forceFieldWall.minable                = {hardness = 0.2, mining_time = 1,
                                           result = (settings.manualPlaceable and forceFieldWall.name or nil),}
  forceFieldWall.mined_sound            = nil
  forceFieldWall.fast_replaceable_group = nil

  forceFieldWall.order                  = "a[items]-f[forcefields]"
  forceFieldWall.subgroup               = "forcefield"

  forceFieldWall.max_health             = settings.properties.maxHealth
  forceFieldWall.resistances            = settings.resistances


  local tint = settings.colorTint   -- add tint to wall
  for pictureName,picture in pairs(forceFieldWall.pictures) do
    -- https://wiki.factorio.com/Prototype/Wall#pictures
    if pictureName == "water_connection_patch" or pictureName == "gate_connection_patch" then
      local tempPicture                    = LSlib.entity.addTintToSprite4Way(picture, tint)
      forceFieldWall.pictures[pictureName] = LSlib.entity.removeShadowFromSprite4Way(tempPicture)
    else
      local tempPicture                    = LSlib.entity.addTintToSpriteVariation(picture, tint)
      forceFieldWall.pictures[pictureName] = LSlib.entity.removeShadowsFromSpriteVariation(tempPicture)
    end
  end

  data:extend{forceFieldWall}

end
I've also attached my save file and the mods used as they are not available on the portal yet.

Kind regards
lovely_santa
Attachments
WallConnectionBug.zip
Save file
(3.16 MiB) Downloaded 52 times
LSlib_2019.8.17.zip
Mod required by ForceFields
(210.55 KiB) Downloaded 54 times
ForceFields2_2.2.0.zip
Mod that introduces the walls
(939.96 KiB) Downloaded 54 times
