[boskid][2.0.54] Heat connections do not flip the same way as pipe connections

[Osmo]

As a demonstration, i created a mod that changes fluidbox of the oil refinery and changes its energy source to heat.

crash_0.1.0.zip

The mod

(1.88 KiB) Downloaded 61 times

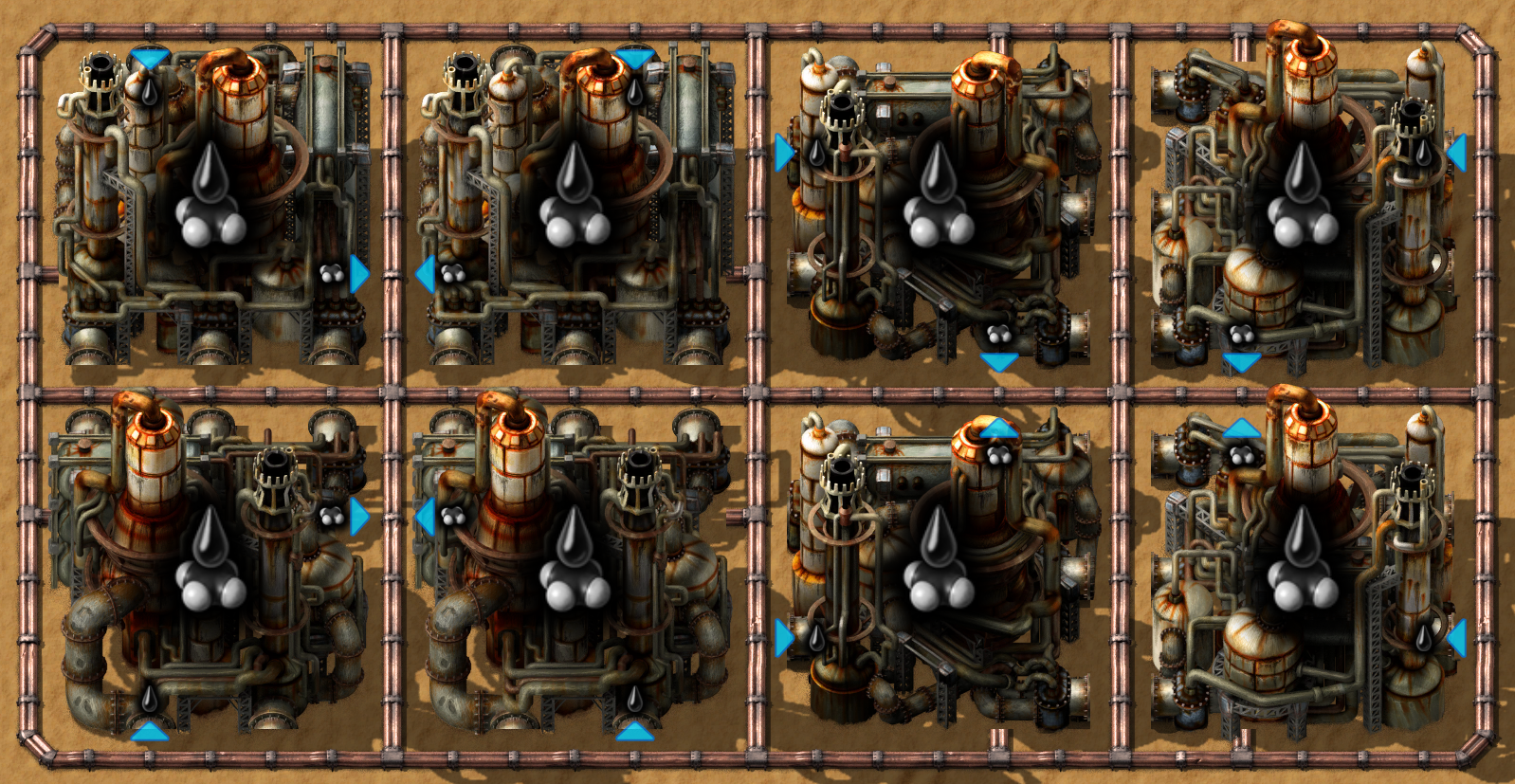

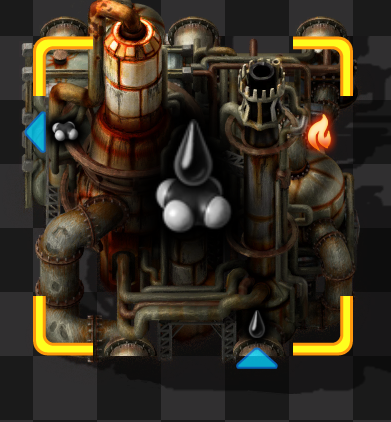

Selecting basic oil processing, it looks like this.

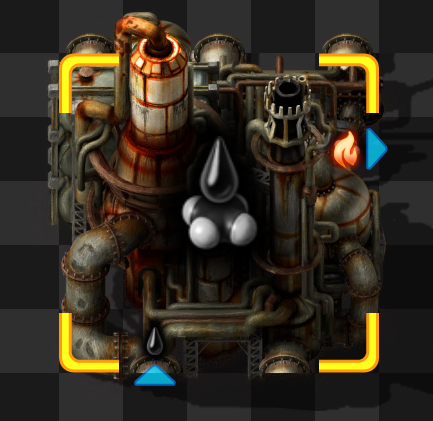

When flipping it horizontally, heat connection stays in place, while pipe connections flip. Result: they overlap.

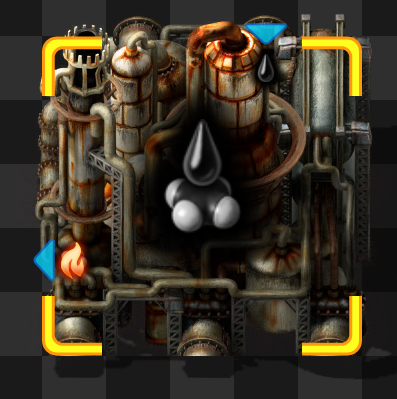

If instead it is flipped vertically, pipe connections are flipped vertically, but heat connections are the same as if they were rotated 180 degrees. Again, they overlap.


This is not just some theoretical scenario, and is something i've encountered in some mods. Even if the overlap was fixed, the inability of heat connections to flip would still affect certain things.

[boskid]

Fixed for 2.0.55.
